180cc off Road Gas Karting Gasoline

180cc Engine

Power Type

8.7KW/7000±500

Max. Power

≥50km/h

Top Speed

175kg

Max. Load

112mm

Ground Clearance

180cc off Road Gas Karting Gasoline

The EJ200GK-7 Gasoline Go-Kart delivers thrilling performance and reliable handling for all riders. Its 180CC engine offers smooth acceleration and a top speed of over 50km/h. Equipped with front and rear disc brakes, independent suspension, and a sturdy steel frame, it provides excellent control, stability, and a safe, enjoyable ride on various terrains.

Contact Us

Basic Configuration

Power System

JL1P63F-2 180CC 4-stroke gasoline engine：Provides strong 8.7KW power and 12.8Nm torque for smooth acceleration and responsive performance.

Transmission & Drive

F-N-R with chain drive and 17:15 gear ratio：Ensures efficient power transfer and easy shifting for a smooth ride.

Braking & Tires

Front and rear disc brakes with 22×7-10 / 22×10-10 tires：Offer strong, responsive braking and reliable traction on different surfaces.

Suspension

Double A-arm independent front / 4-link independent rear with double shock absorbers：Delivers stable handling and comfortable riding even on rough terrain.

Frame & Dimensions

Steel frame, 2230×1420×1460mm overall size, 1656mm wheelbase：Provides durability, stability, and safe seating for riders.

Additional Features

8-Inch LCD Dashboard

Displays speed, RPM, mileage, and more with high brightness forclear visibility even in direct sunlight

.

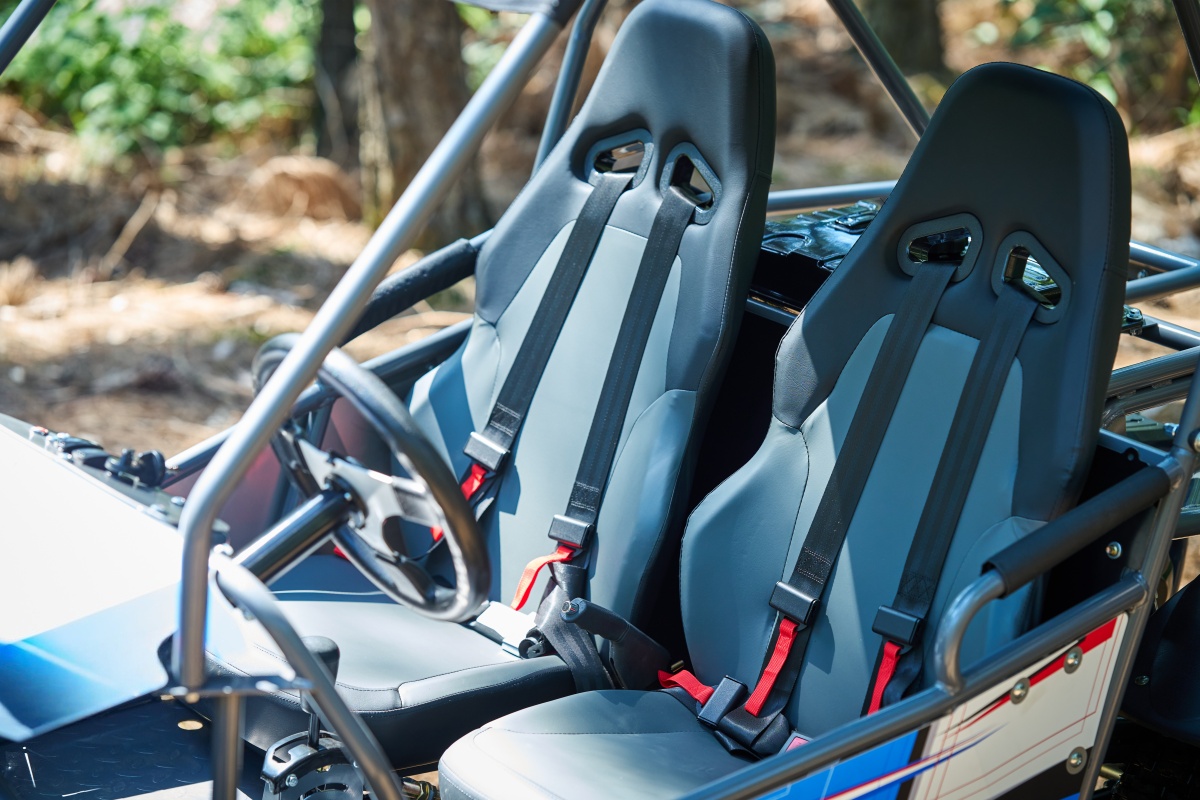

Adjustable 4-Point Safety Harness

Provides enhanced upper-body protection and stability during high-speed driving and sharp turns. The adjustable design ensures a secure and comfortable fit for different riders.

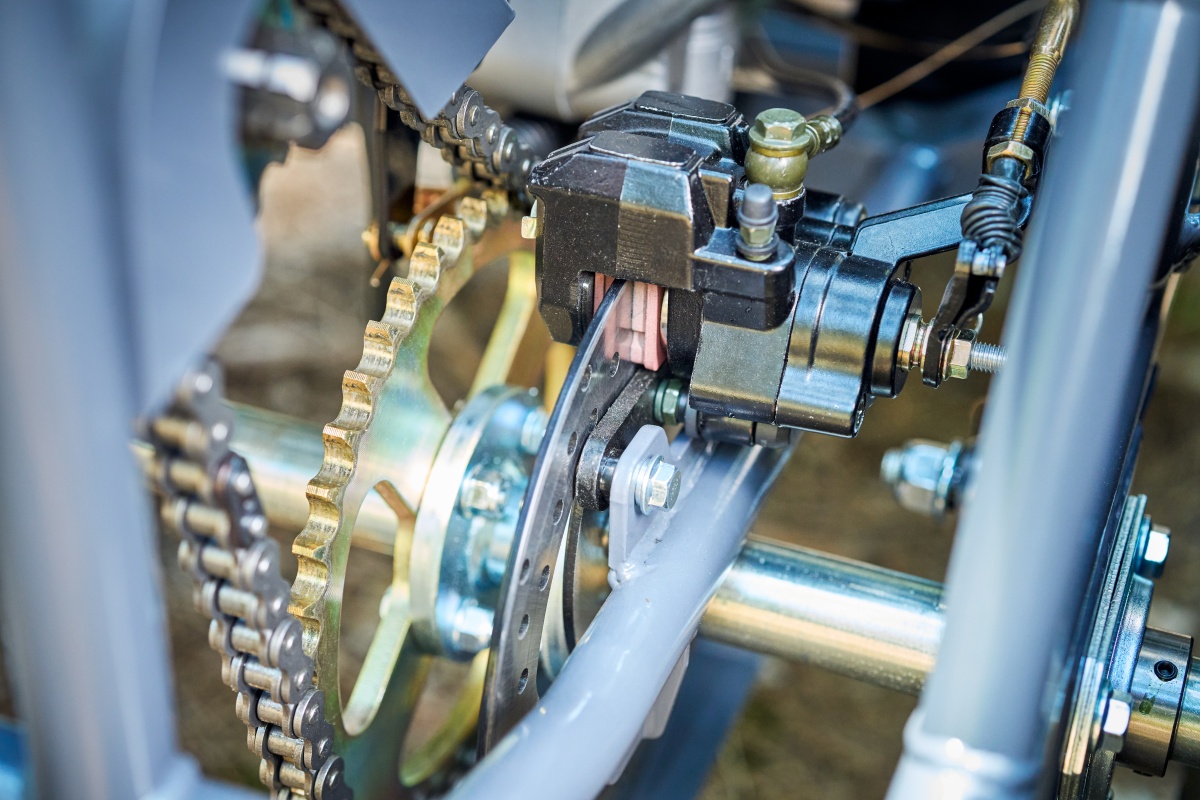

Durable Chain Drive System

Engineered for efficient power transmission and long-lasting performance. The reinforced chain structure delivers smooth acceleration while maintaining durability under demanding terrain and extended riding sessions.

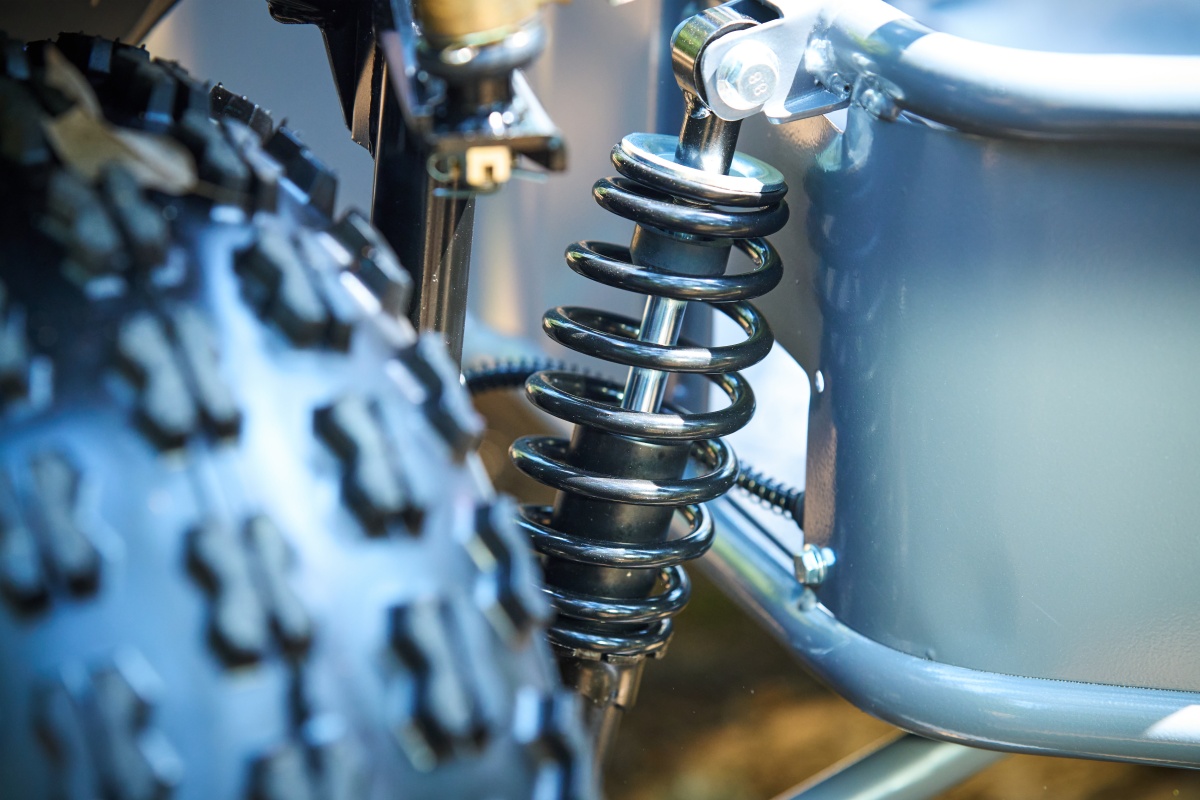

Rear Shock Suspension System

Absorbs impact from bumps, dips, and uneven trails to improve ride comfort and control. The rear suspension enhances stability and traction, allowing the kart to maintain balance.

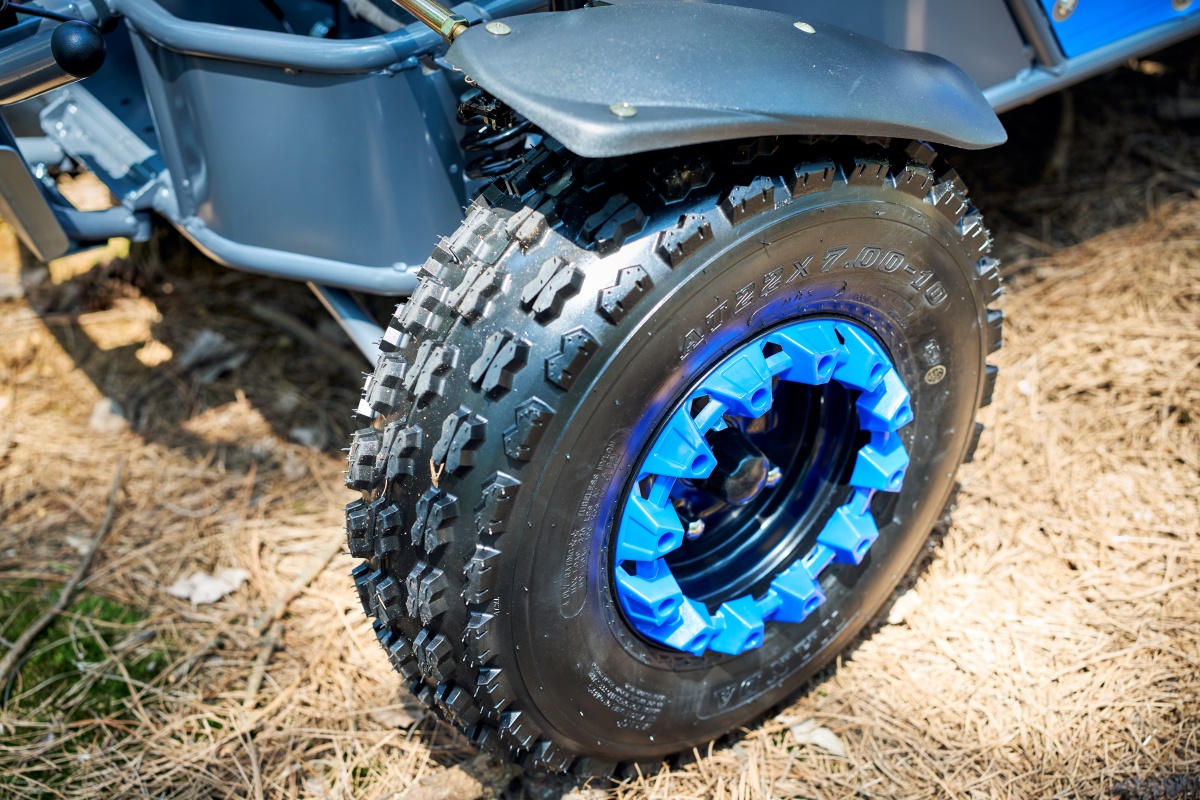

Heavy-Duty All-Terrain Tires

Designed with aggressive tread patterns for superior grip on dirt, gravel, sand, and grass. The durable rubber compound improves traction and handling while increasing resistance to wear and punctures.

Specifications

Vehicle Model	EJ200GK-7
Engine Type	JL1P63F-2 (180CC)
Max. Power/Torque	8.7KW/7000±500 / 12.8Nm/5500±500
Max. Speed	≥50km/h
Cooling Mode	Aircooled
Number of Stroke	4-stroke
Number of Cylinders	1-cylinder
Bore × Stroke	φ62.5×57.8
Compression Ratio	9.6:1
Ignition	CDI
Starting	Electrical start
Fuel Type	Gasoline
Transmission	F-N-R
Drive Train	Chain drive
Gear Ratio	17:15
Engine Oil Capacity	0.9L

Overall Size (L×W×H)	2230×1420×1460mm
Wheelbase	1656mm
Ground Clearance	112mm
Seat Height	504mm
Suspension (Front/Rear)	Double A-arm Independent/double shock absorber / 4-link Independent/double shock absorber
Brakes (Front/Rear)	Disc Brake / Disc Brake
Tires (Front/Rear)	22×7-10 / 22×10-10
Rims	Steel
Muffler	Steel
Dry Weight	225kg
Gross Weight	255kg
Package Size	1180×2230×640mm
Loading Quantity	40pcs/40´HQ
Certificates	CE, UKCA, EPA
