120cc Motorcycle Engine

Power Type

5.5KW/8500±500

Max Power

≥40km/h

Top Speed

75kg

Max. Load

120mm

Ground Clearance

ej120atv-offroad-full-view

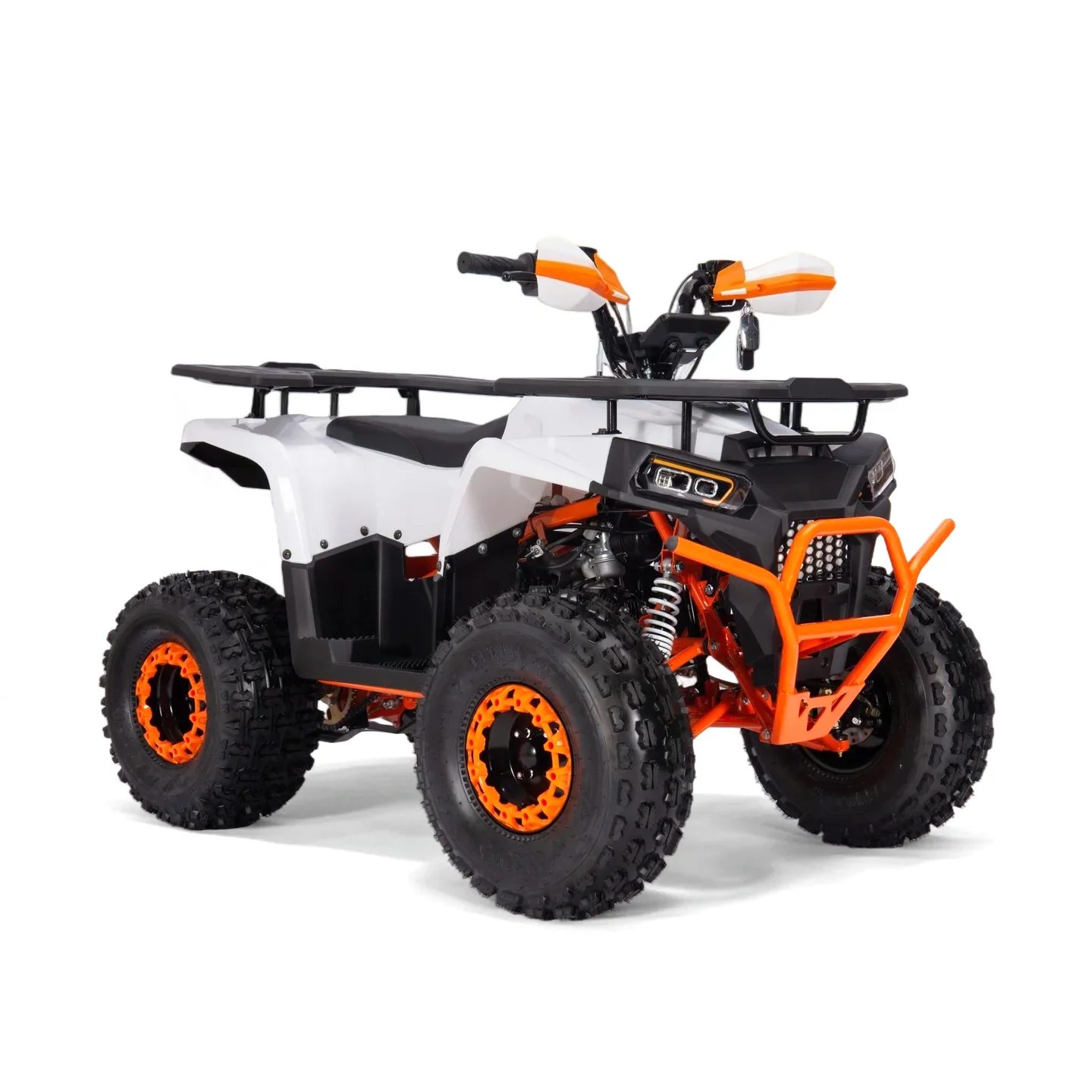

EJ120ATV

The EJ120ATV is a compact and reliable 120cc ATV designed for recreational off-road use. It offers smooth power delivery with strong torque, easy electric start, and stable handling. Equipped with a durable frame, effective suspension, and front and rear disc brakes, the FR120ATV provides a comfortable and confident riding experience on various terrains.

Contact Us

Basic Configuration

Power System

152FMI 120cc air-cooled engine：Delivers smooth power output with strong torque, ideal for recreational and light off-road riding.

Starting & Ignition System

Electric start with CDI ignition：Ensures quick, reliable starting and stable engine performance.

Braking & Tires

Front & rear disc brakes with off-road tires：Provide responsive braking and confident grip on various terrains.

Suspension System

Independent front suspension and rear dual shock absorbers：Improve ride comfort and stability over uneven ground.

Drivetrain & Control

F-N-R transmission with chain drive：Offers easy maneuverability and user-friendly control for different riding situations.

Additional Features

ej120atv-atv-key-features1

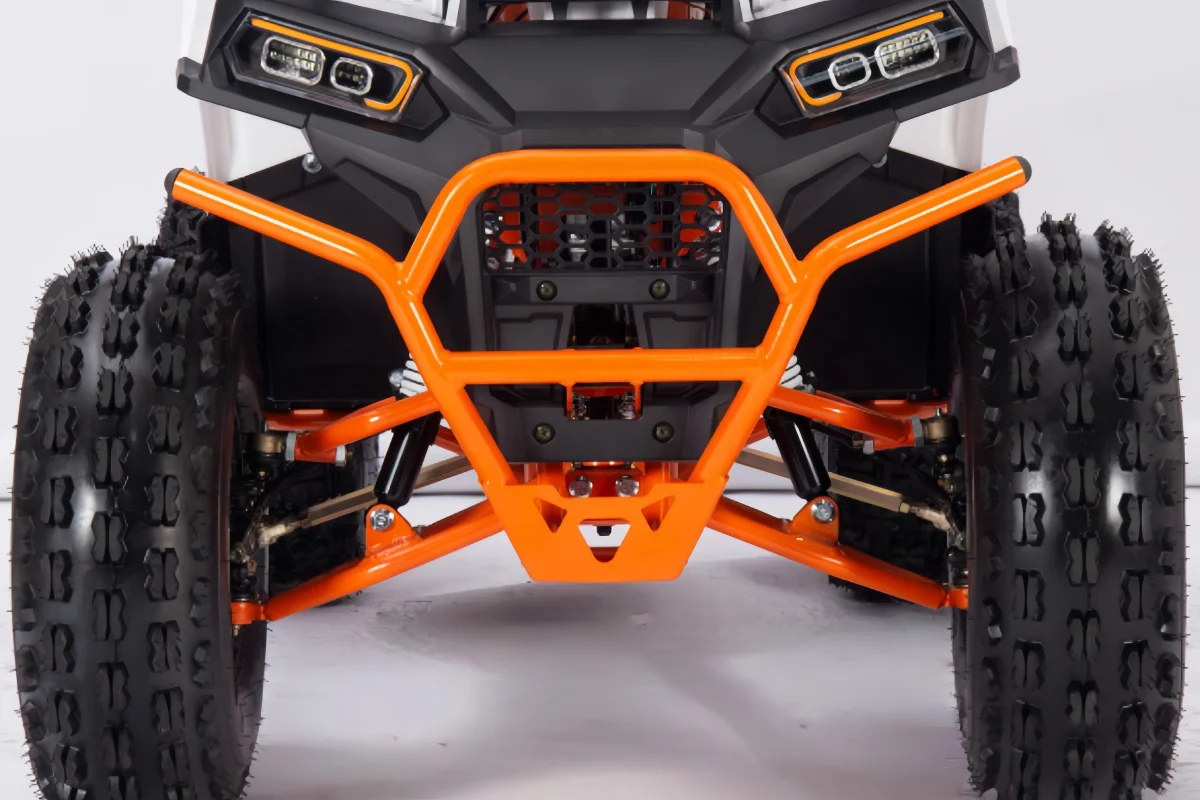

Heavy-Duty Front Bumper

Strong steel protection built to handle tough off-road impacts.

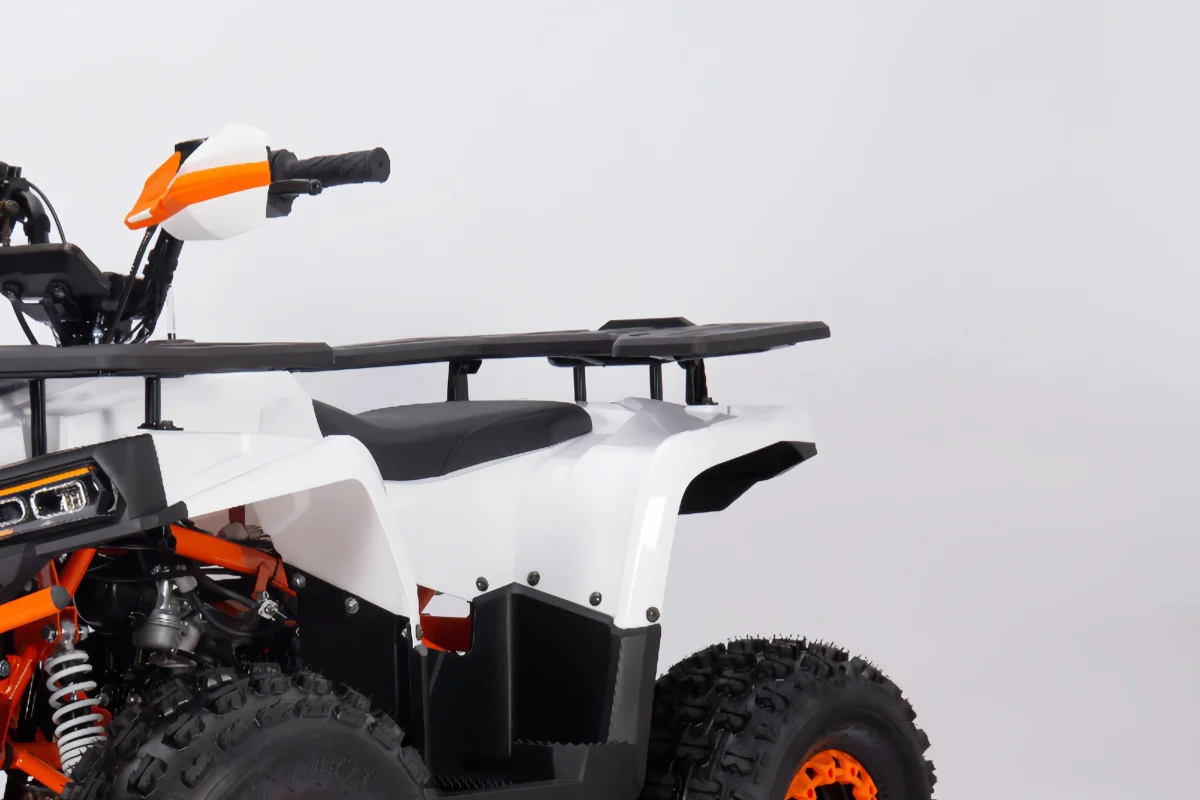

Comfort Ride Seat

Ergonomic, well-padded seat for long-lasting riding comfort.

ej120atv-atv-key-features2
ej120atv-atv-key-features3

High-Visibility LED Taillight

Bright, fast-responding light for safer riding day or night.

Specifications

Vehicle Model EJ120ATV
Engine Type 152FMI (120CC)
Max. Power/Torque 5.5 kW / 8500±500 rpm ; 6.9 Nm / 6000±500 rpm
Max. Speed ≥40 km/h
Cooling Mode Air cooled
Number of Stroke 4-stroke
Number of Cylinders 1-cylinder
Bore × Stroke Ø52.4 × 55.5 mm
Compression Ratio 9.6:1
Carburetor PZ22
Ignition CDI
Starting Electric start
Starting Battery 12V 5Ah
Fuel Type Gasoline
Transmission F–N–R
Drive Train Chain drive
Gear Ratio 17:13
Engine Oil Capacity 0.8 L
Overall Size (L×W×H) 1430 × 920 × 1000 mm
Wheelbase 950 mm
Ground Clearance 120 mm
Seat Height 720 mm
Suspension (Front/Rear) Front: Independent double shock absorber / Rear: Double shock absorber
Brakes (Front/Rear) Front: Disc brake / Rear: Disc brake
Tires (Front/Rear) Front: 16×6-8 / Rear: 16×7-8
Rims Steel
Muffler Steel
Dry Weight 118 kg
Gross Weight 138 kg
Package Size 1390 × 760 × 630 mm
Loading Quantity 96 pcs / 40’HQ
Certificates CE, UKCA,EPA
EPA
Rims Cover
Remote Control / Alarm
Aluminum Rims
LCD Meter
Handguard
Front Cargo
3+1 Gearbox
Flag
Handlebar heat
ej120atv-atv-specifications
