EJ125ATV-UT

120cc Motorcycle Engine

Power Type

6.0KW/7500±500

Max. Power

≥40km/h

Top Speed

90kg

Max. Load

120mm

Ground Clearance

The 120cc Utility ATV delivers a practical blend of power and versatility, driven by a reliable 120cc engine offering smooth performance for daily outdoor use. With 120 mm ground clearance and a tight turning radius, it handles dirt paths, grass, and narrow spaces with ease. A sturdy steel frame, durable suspension, and towing capability make it dependable for light hauling, farm tasks, and recreational riding.

Contact Us

Basic Configuration

Power System

The HenSim 120cc engine with vibration-damping design delivers steady, smooth power suited for utility riding.

Battery & Electrical System

The GuYue starter battery provides reliable starts and stable electrical performance for everyday use.

Braking & Tires

Front and rear disc brakes offer consistent, confident stopping power for work and outdoor tasks.

Suspension

The aluminum inverted rear air shock enhances stability and riding comfort across uneven ground.

Lighting System

Full LED lighting package：Ensures bright visibility and low-power consumption in all riding conditions.

Additional Features

Muffler with Fire Cover

The muffler is equipped with a secure fire cover that helps prevent spark discharge and reduces noise, providing safer and more reliable off-road operation.

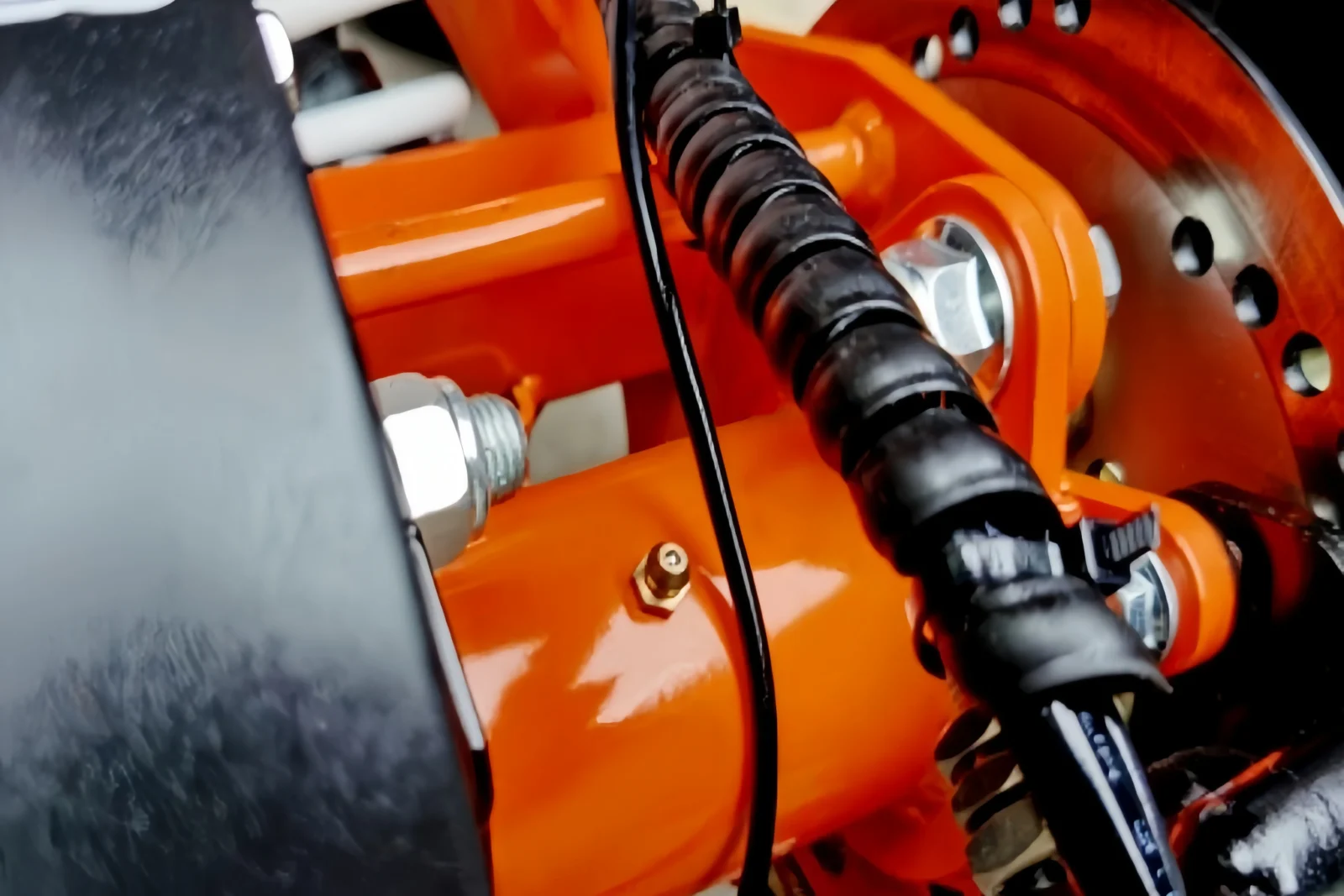

Rocker Arm & Spacer with Grease Nipple

A built-in grease nipple allows easy lubrication of the rocker arm and spacer, minimizing component wear and improving long-term suspension stability.

GuYue Performance Starter Battery

This high-quality starter battery delivers strong ignition power and consistent electrical performance, ensuring dependable starts and system reliability.

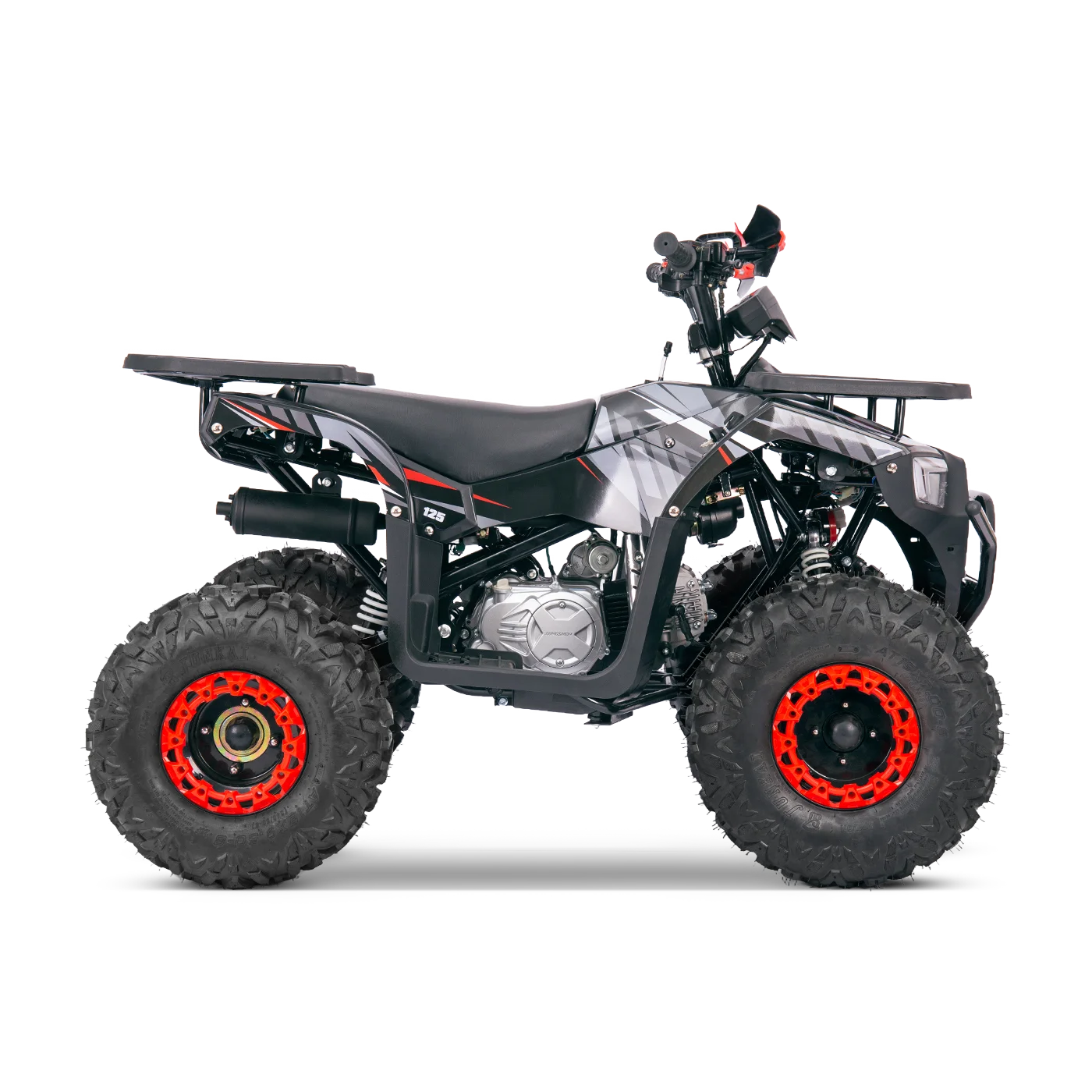

Specifications

Vehicle Model	EJ125ATV-UT
Engine Type	154FM (120CC)
Max. Power/Torque	6.0KW/7500±500 / 9.5Nm/5500±500
Max. Speed	≥40km/h
Cooling Mode	Air cooled
Number of Stroke	4-stroke
Number of Cylinders	1-cylinder
Bore × Stroke	φ54×54
Compression Ratio	9.0:1
Carburetor	PZ22
Ignition	CDI
Starting	Electrical start
Starting Battery	12V5Ah
Fuel Type	Gasoline
Transmission	F-N-R

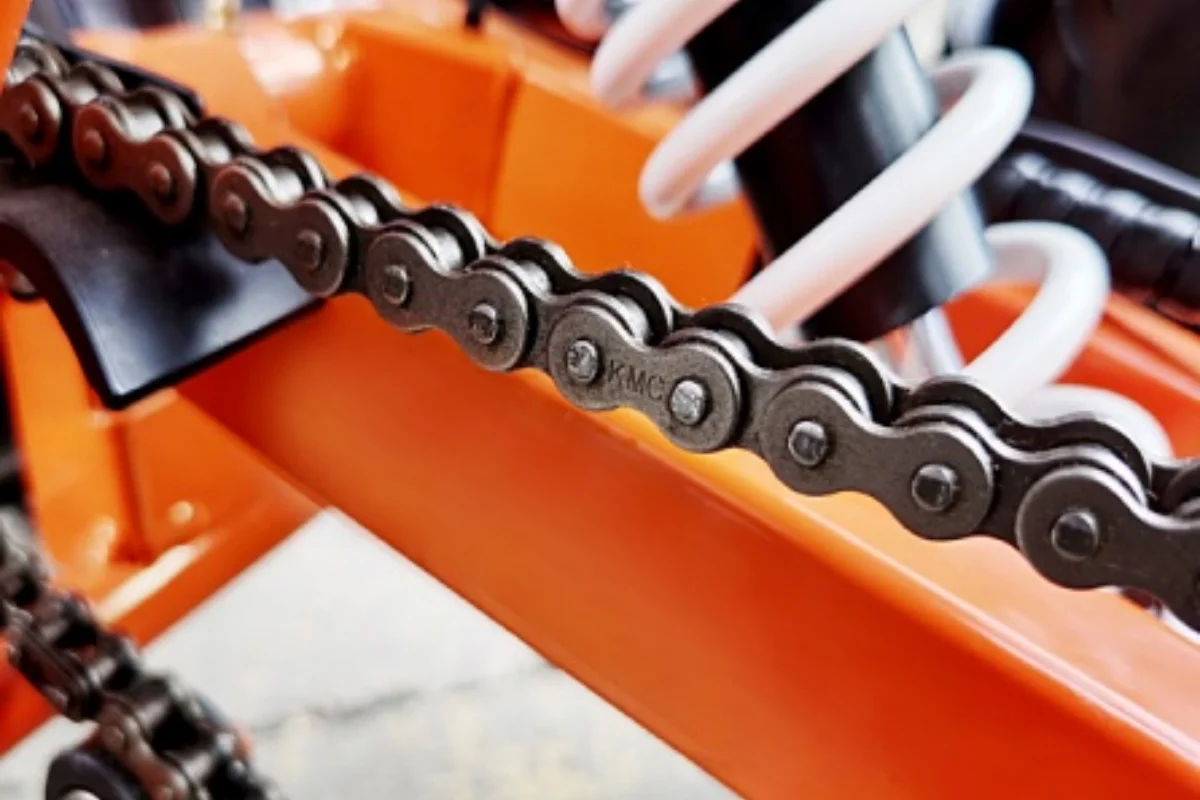

Drive Train	Chain drive
Gear Ratio	41：13
Engine Oil Capacity	0.9L

Overall Size (L×W×H)	1430×920×1000mm
Wheelbase	950mm
Ground Clearance	120mm
Seat Height	410mm
Suspension (Front/Rear)	Independent double shock absorber / Single shock absorber
Brakes (Front/Rear)	Disc Brake / Disc Brake
Tires (Front/Rear)	19×7-8 / 18×9.5-8
Rims	Steel
Muffler	Steel
Dry Weight	115kg
Gross Weight	135KG
Package Size	1380×770×640mm
Loading Quantity	92pcs/40´HQ
Certificates	CE, UKCA, EPA
