Max. Power
Top Speed
Max. Load
Ground Clearance

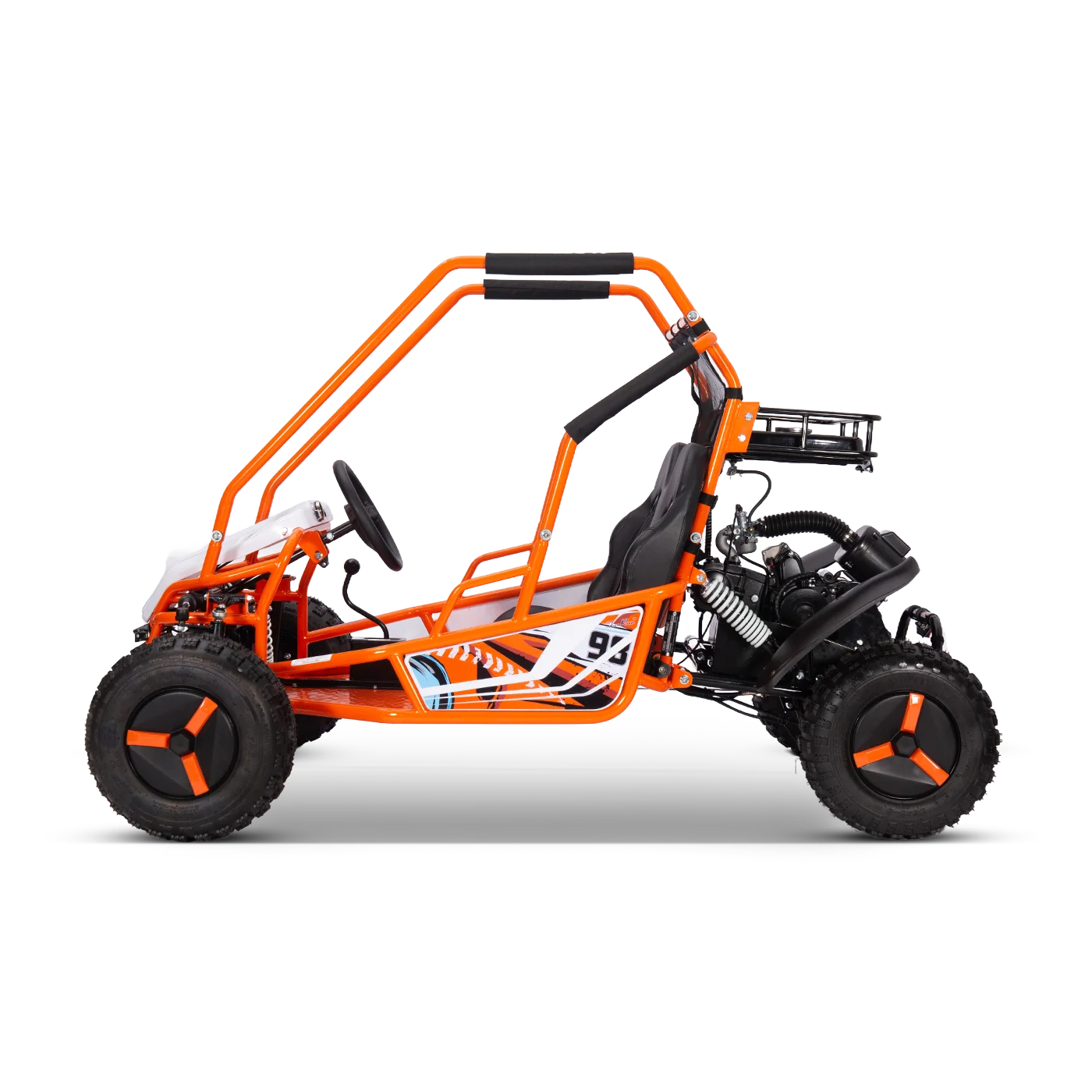

The 120cc gasoline go-kart provides quick, responsive performance with 6.0 kW of power and 9.5 N·m of torque. Its 105 mm ground clearance allows stable handling on light terrain, while the compact design makes it easy to control for recreational riding and family fun.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
The PZ22 carburetor ensures stable fuel delivery and efficient combustion, improving throttle response and overall engine performance.
A high-flow filter increases air intake efficiency, supporting cleaner combustion and helping maintain consistent engine output.
The seat’s wide adjustment range accommodates riders of different heights, providing improved comfort, control, and ergonomics.
The reinforced KMC chain offers reliable power transmission with excellent wear resistance, ensuring stable performance over time.

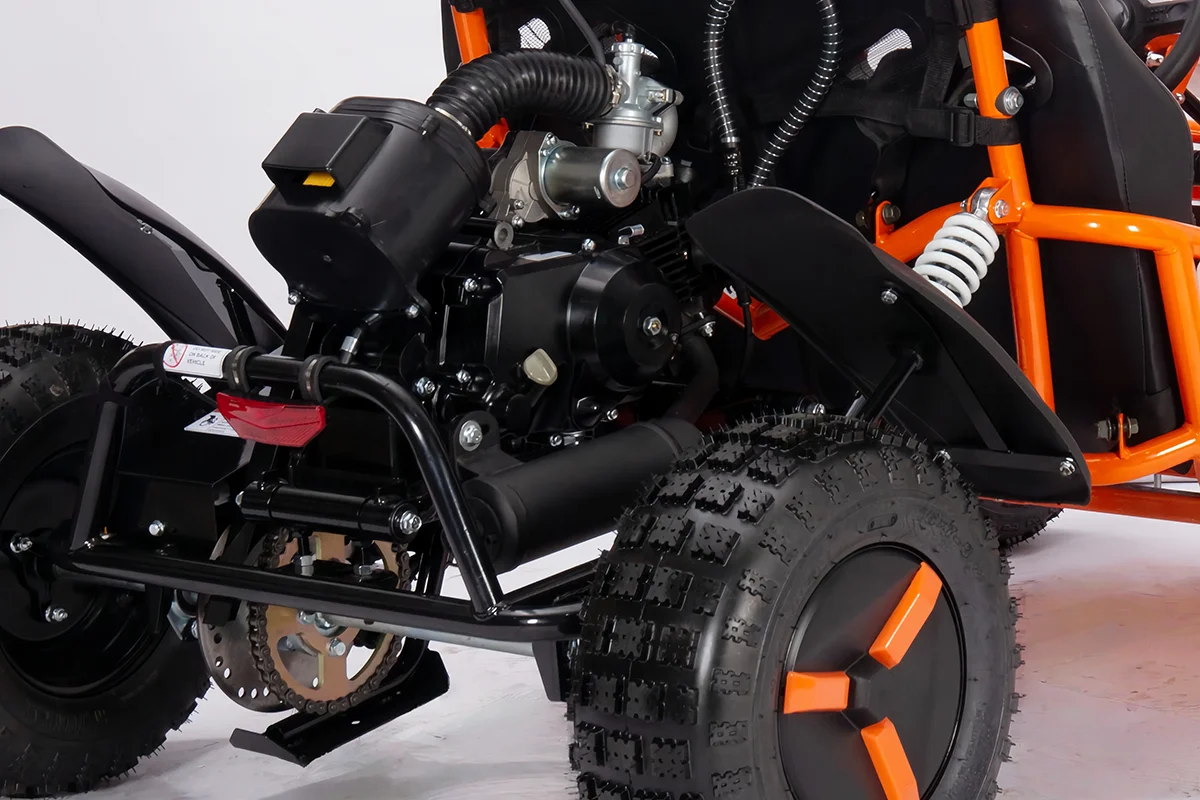

The reliable 120cc engine delivers smooth, steady power, while damping rubber reduces vibration for a more comfortable and controlled riding experience.
The rear disc brake provides strong, responsive stopping power, enhancing braking stability and rider safety across varied terrain.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Premium C&U bearings reduce friction for smoother rotation and deliver long-lasting durability under frequent or demanding use.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

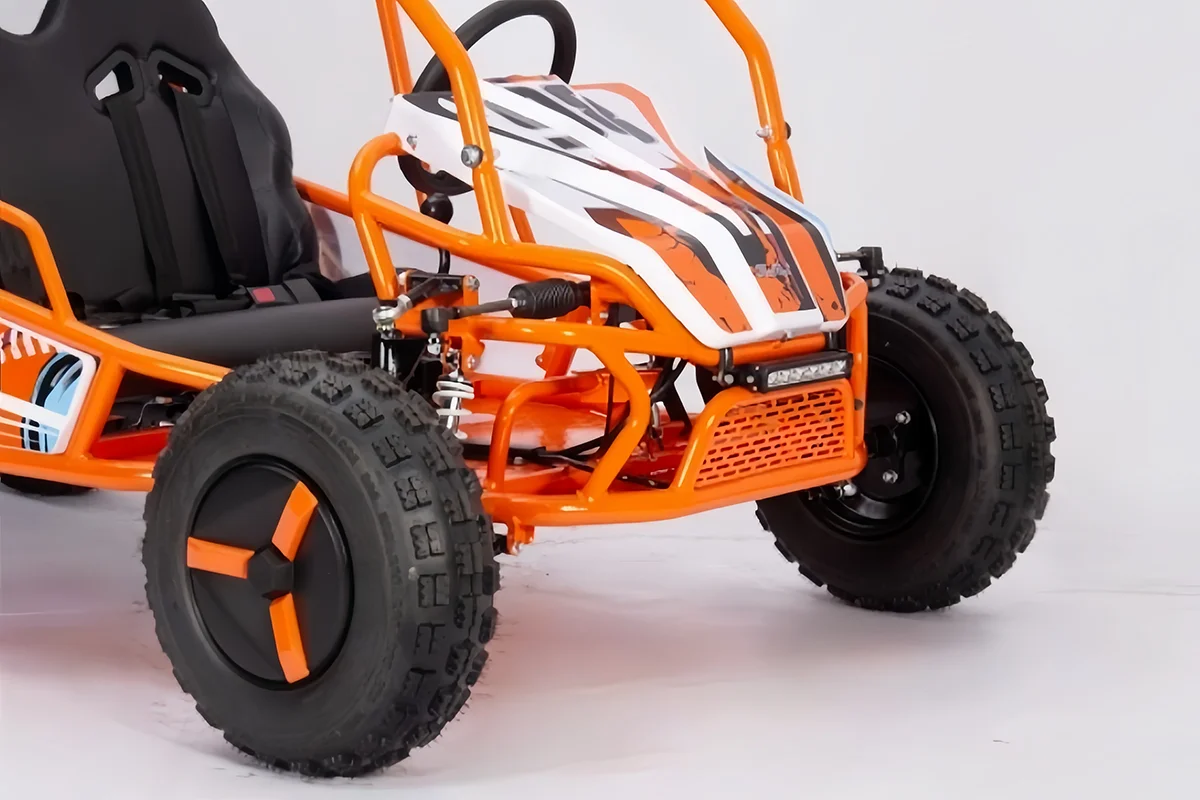

These all-terrain tires deliver solid grip and traction, offering dependable handling on dirt, gravel, grass, and light off-road surfaces.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
| Vehicle Model | EJ125GK |
| Engine Type | 154FM (120CC) |
| Max. Power/Torque | 6.0kw/7500±500r/min / 9.5N.m/5500±500r/min |
| Max. Speed | ≥38km/h |
| Cooling Mode | Oilcooled |
| Number of Stroke | 4-stroke |
| Number of Cylinders | 1-cylinder |
| Bore × Stroke | φ54×54 |
| Compression Ratio | 9.0:1 |
| Ignition | CDI |
| Starting | Electrical start |
| Fuel Type | Gasoline |
| Transmission | F-N-R |
| Drive Train | Chain drive |
| Gear Ratio | 17:13 |
| Engine Oil Capacity | 0.9L |
| Overall Size (L×W×H) | 1900×1220×1220mm |
| Wheelbase | 1456mm |
| Ground Clearance | 105mm |
| Seat Height | 400mm |
| Suspension (Front/Rear) | Independent double shock absorber / Double shock absorber |
| Brakes (Front/Rear) | Disc Brake / Disc Brake |
| Tires (Front/Rear) | 145/70-6 / 16*8-7 |
| Rims | Steel |
| Muffler | Steel |
| Dry Weight | 134.5kg |
| Gross Weight | 163.5kg |
| Package Size | 1880×1140×640mm |
| Loading Quantity | 48pcs/40’HQ |
| Certificates | CE, UKCA, EPA |
| Rims Cover |
| 16*7-8 Big Wheel |
| Cup Hold |
| Buletooth Speaker |
| Windshield |
| Soft Roof |
| Flag |
| Color Box |
| Oil Cooler |
| Rear Fender |
| Front & Rear LED Lights |
