Max Power
Top Speed
Max. Load
Ground Clearance

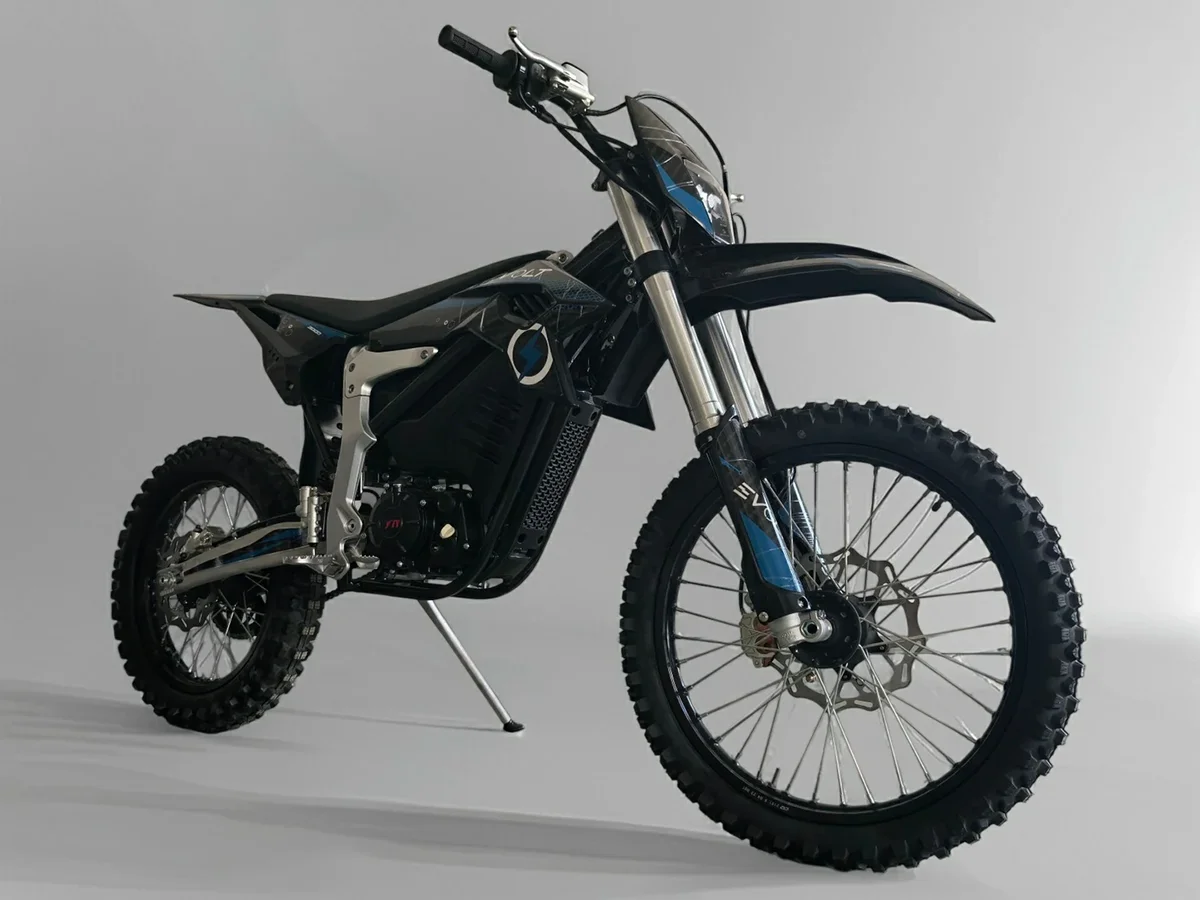

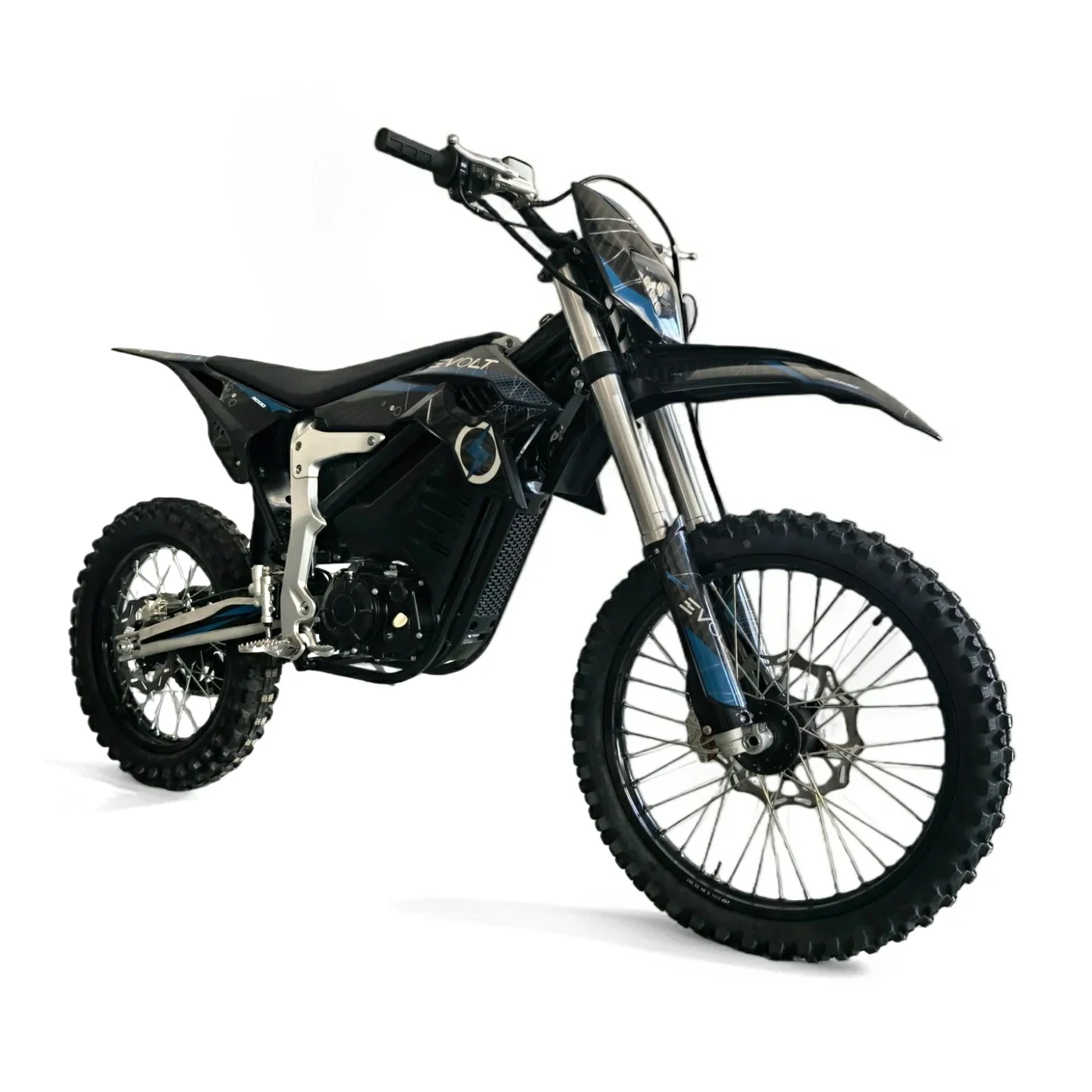

The EJ12KDB is a lightweight electric off-road motorcycle powered by a 3KW motor and 72V 40Ah lithium battery, delivering strong torque and a top speed of 125 km/h. With 318 mm ground clearance, long-travel suspension, and disc brakes, it’s built for reliable off-road performance and control.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Driven by a DC permanent magnet synchronous motor with 3kW rated power and 12kW peak power, it delivers strong acceleration and smooth power output.
Adopts a 72V 40AH lithium-ion battery, providing long-lasting riding endurance and stable power supply under load.
Features 80/100-21 front tire and 110/90-18 rear tire, paired with 7116 alloy rims and casted hubs, offering excellent passing ability over obstacles and enhancing riding balance on rough terrain.
Equipped with front and rear disc brakes with copper-base brake pads, delivering quick, sensitive and consistent stopping power, effectively improving riding safety especially during high-speed travel.
Built with #6061 forged aluminum frame and #6061 forged aluminum rear swing arm, combining light weight and high strength. The dry weight is only 108KG, while supporting a max load of 150KG.

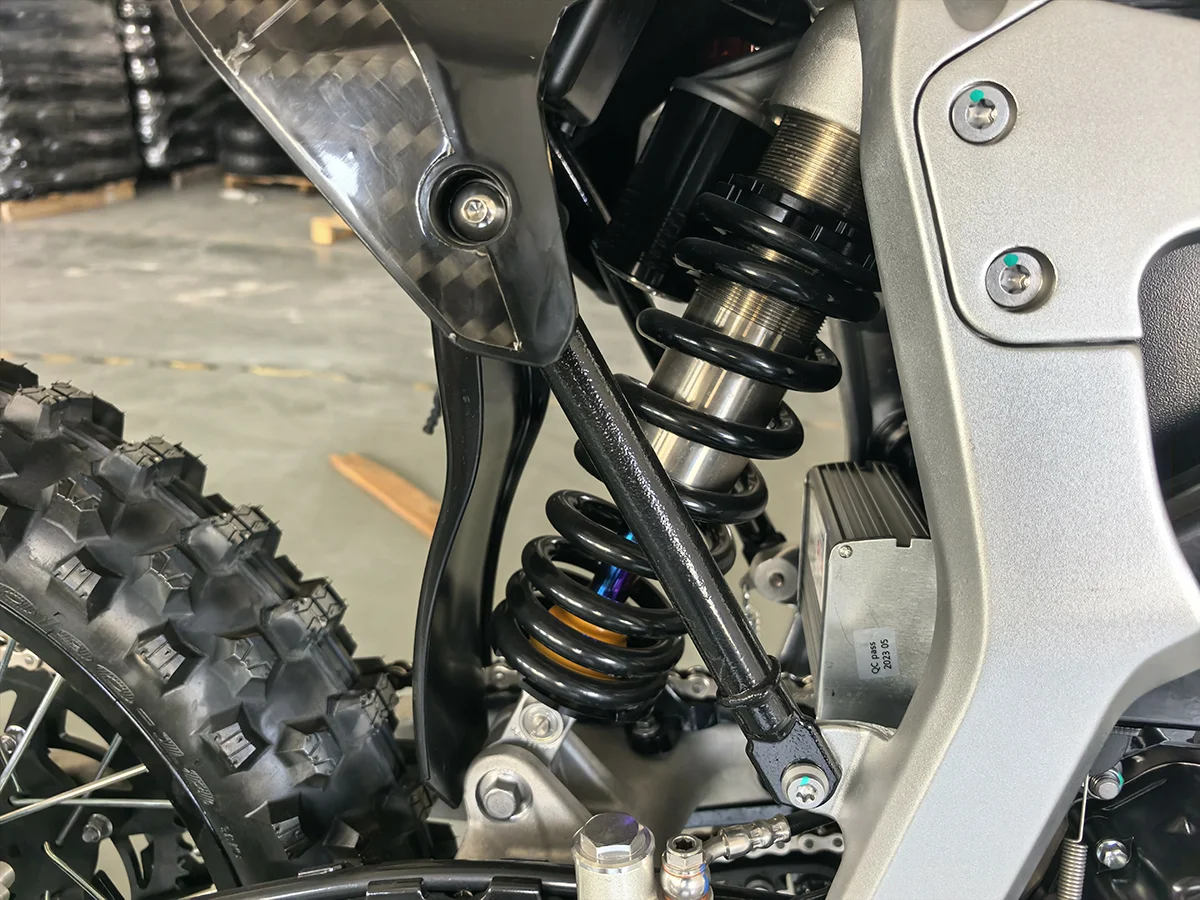

Comes with inverted hydraulic dual adjustable front forks and dual adjustable rear mono shock, significantly enhancing shock absorption performance and riding stability on bumpy or rough roads.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

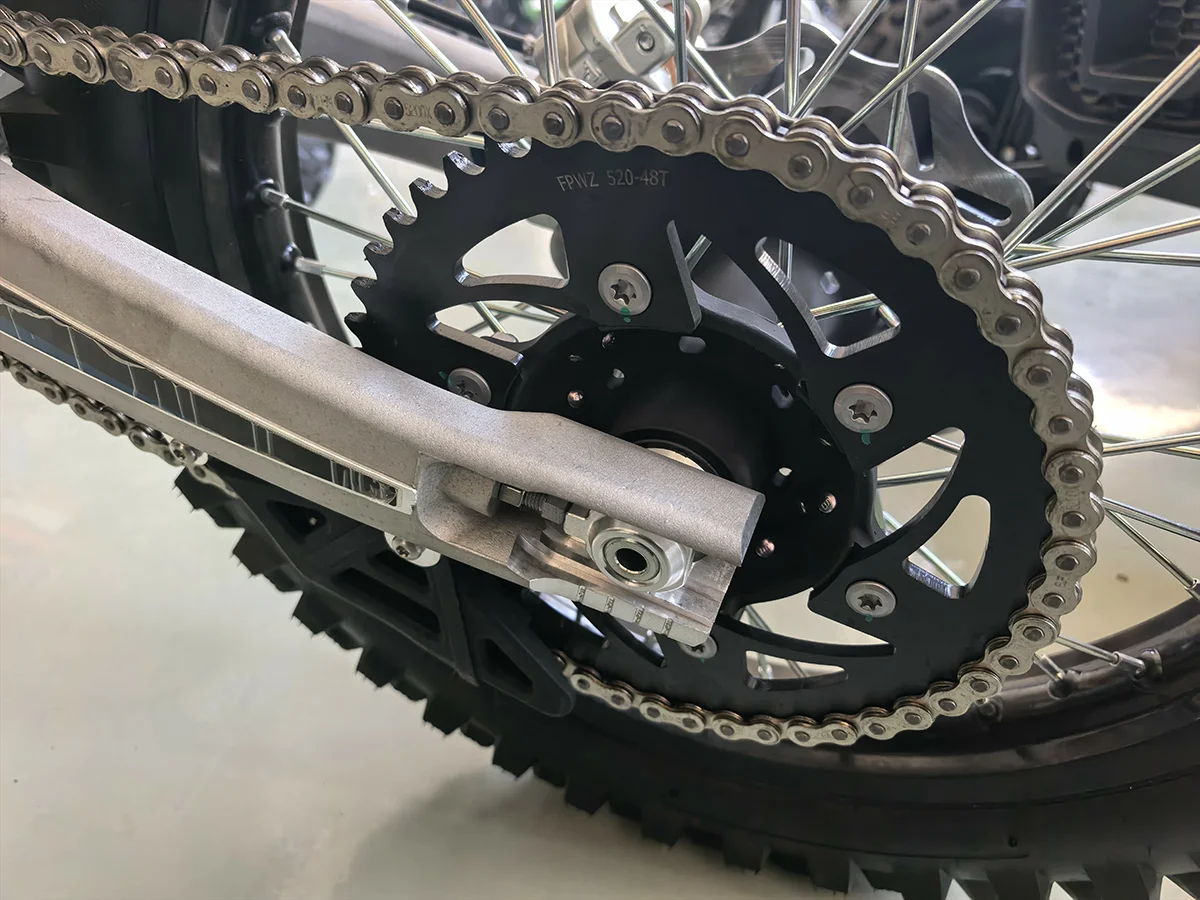

Adopts driving chain and high-strength steel rear sprocket, enabling efficient and reliable torque transfer from the motor to the wheels, suitable for demanding off-road riding conditions.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Equipped with CNC triple clamps, tapered aluminum handlebar and LCD meter, providing clear data display and comfortable operation, enhancing the overall riding convenience and experience.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
With overall dimensions of 2120×840×1225MM, wheelbase of 1424mm and seat height of 900mm, it has a reasonable structure for off-road riding.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
| Vehicle Model | EJ12KDB |
| Motor Type | DC PERMANENT MAGNET SYNCHRONOUS |
| Power / Torque | 3KW / 65N.M |
| Motor’s Peak Power | 12KW |
| Top Speed | 125KM/H |
| Battery | 72V 40AH LITHIUM-ION BATTERY |
| Max Load | 150KG |
| Transmission | 0-1-2-3-4 FORWARD GEAR |
| Drive Train | Chain drive |
| Overall Size (L×W×H) | 2120×840×1225MM |
| Wheelbase | 1424mm |
| Ground Clearance | 318mm |
| Seat Height | 900mm |
| Suspension (Front/Rear) | Hydraulic, Conventional / Mono Shock |
| Brakes (Front/Rear) | Disc Brake / Disc Brake |
| Tires (Front/Rear) | 80/100-21 / 110/90-18 |
| Dry Weight | 108KG |
| Certificates | CE, UKCA |
