Max Power
Top Speed
Max. Load
Ground Clearance

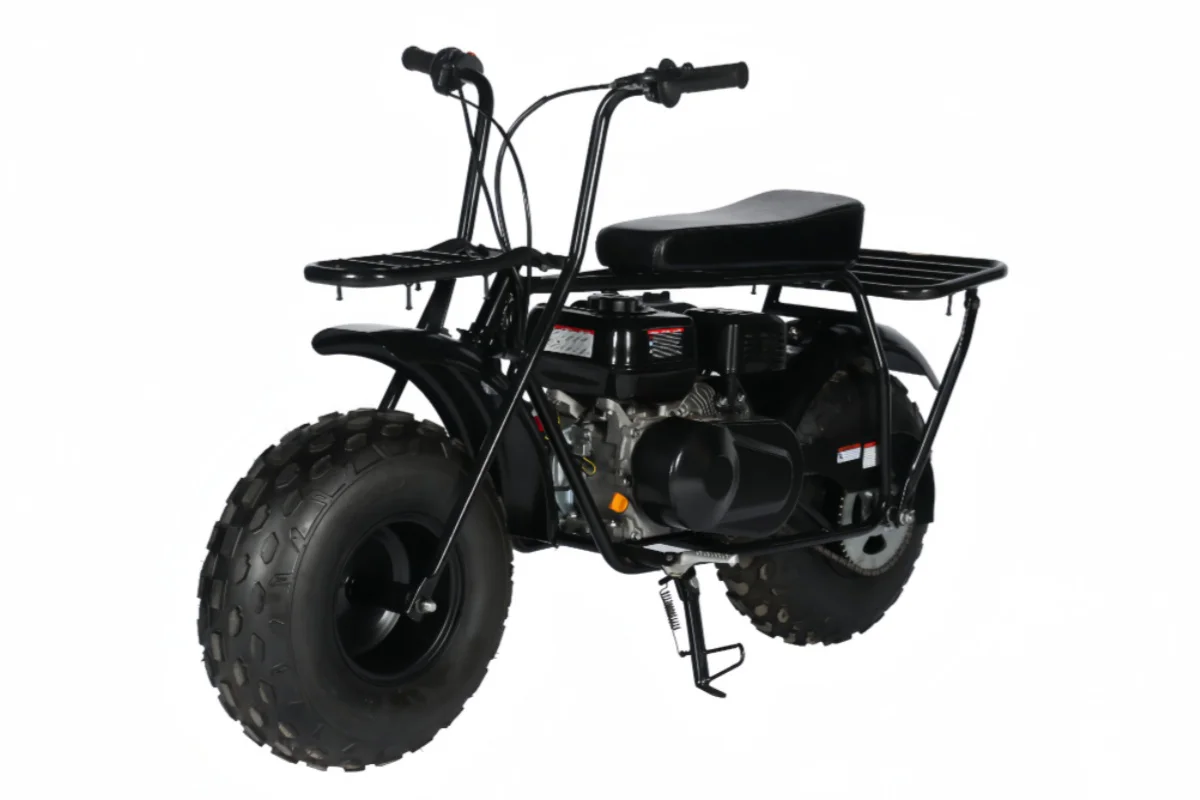

The EJ200UMB is a powerful off-road mini bike designed for performance-oriented riders. It features a 212cc 4-stroke engine, delivering strong torque and stable power for trail and outdoor riding.Equipped with a CVT transmission, this model provides seamless acceleration and smoother speed control.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
The 212cc 4-stroke fan-cooled engine provides strong torque and stable power for off-road riding.
CVT transmission delivers smooth, stepless acceleration and improved riding comfort.
Chain drive system ensures direct and efficient power transfer.
Rear mechanical drum brake offers consistent braking performance under various riding conditions.
2.8L fuel tank allows extended riding time and stable fuel supply.
Wide 19×7-8 tires provide strong grip and stability on dirt, grass, gravel, and uneven surfaces, improving control and comfort.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

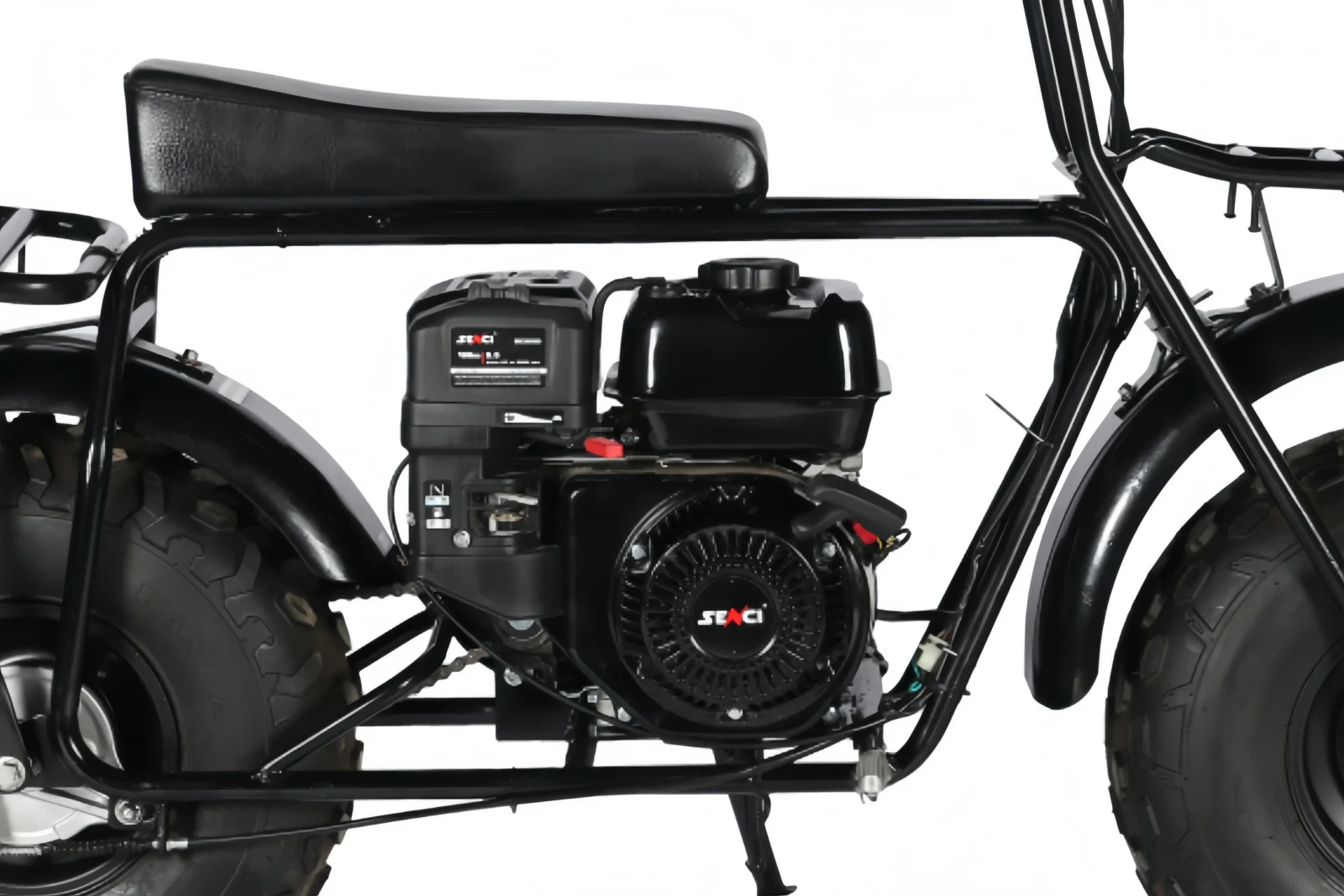

Equipped with a DK170F 212cc 4-stroke engine, the mini bike delivers strong torque and smooth power. The fan-cooled design ensures stable performance during extended riding.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Built with a reinforced steel frame, the FR200UMB offers high durability, impact resistance, and long-term structural strength.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

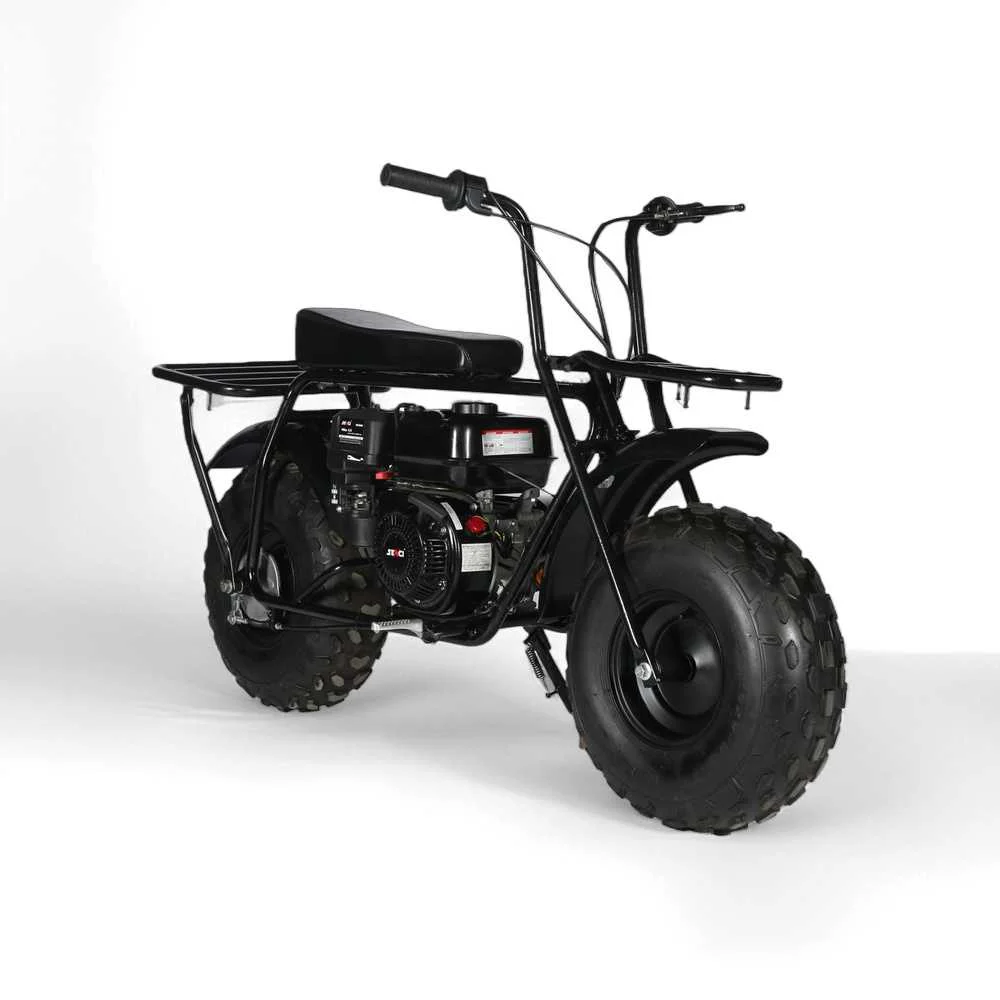

| Vehicle Model | EJ200UMB |
| Engine Type | DK170F (212CC) |
| Max. Power/Torque | 4.0kw/3600r/min / 12N·m/2500r/min |
| Max. Speed | ≥35km/h |
| Cooling Mode | Fan cooled |
| Number of Stroke | 4-stroke |
| Number of Cylinders | 1-cylinder |
| Bore × Stroke | φ70×55 |
| Compression Ratio | 8.5:1 |
| Ignition | TCI |
| Starting | Pull start |
| Fuel Type | Gasoline |
| Transmission | CVT |
| Drive Train | Chain drive |
| Gear Ratio | 7.5：1 |
| Engine Oil Capacity | 0.45L |
| Overall Size (L×W×H) | 1450×680×930 |
| Wheelbase | 1050 |
| Ground Clearance | 150 |
| Seat Height | 650 |
| Suspension (Front/Rear) | / / |
| Brakes (Front/Rear) | Mechanical Drum Brake / Mechanical Drum Brake |
| Tires (Front/Rear) | 19×7-8 / 19×7-8 |
| Rims | / |
| Muffler | / |
| Dry Weight | 55kg |
| Gross Weight | 68kg |
| Package Size | 1180×500×770mm |
| Loading Quantity | 123pcs/40´HQ |
| Certificates | CE, UKCA |
