EJ24-1000MS

24V 1000W/1200W Linix Motor Drive

Power Type

10km/h or 16km/h

Top Speed

200KG

Max. Load

110 mm

Ground Clearance

The DM418 mobility scooter is a powerful mid-size model designed for stable outdoor performance and daily convenience. Featuring a strong 24V Linix motor system, large tubeless tires, and a high load capacity, it delivers reliable driving power and smooth maneuverability. With long travel range and compact turning radius, the DM418 is suitable for both urban mobility and extended outdoor use.

Contact Us

Basic Configuration

24V Linix Motor Drive System

Equipped with a 1000W/1200W Linix motor for dependable power output. Ensures smooth acceleration and consistent performance on daily routes.

Up to 45KM Travel Range

Extended range options with lead-acid or lithium batteries support longer trips. Reduces charging frequency for regular outdoor mobility.

Compact 1.8M Turning Radius

Tight turning capability improves maneuverability in narrow paths and indoor spaces. Enhances overall driving control and flexibility.

13″ Tubeless Tire Configuration

Large tubeless tires provide better traction and riding stability. Suitable for various surfaces including sidewalks and outdoor terrain.

200KG Heavy-Duty Load Capacity

Reinforced structure supports higher rider weight with stable performance. Ideal for users seeking a strong and durable mobility solution.

Additional Features

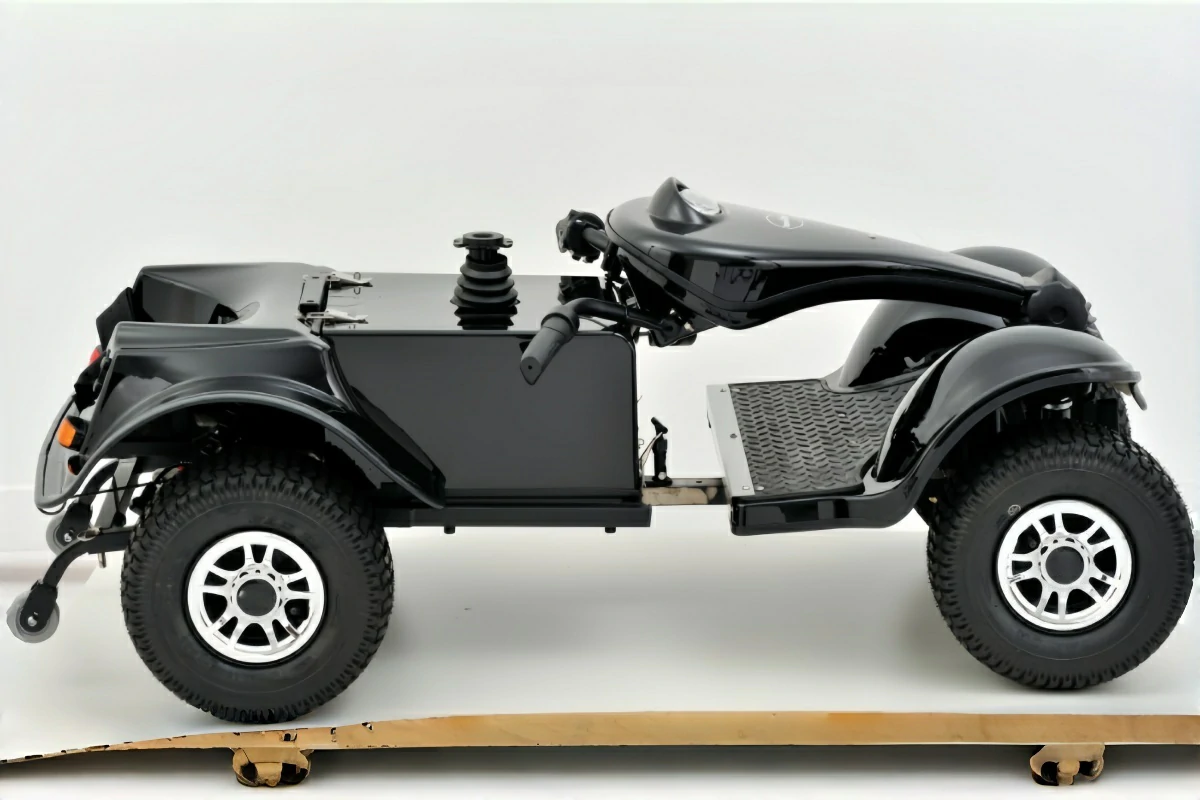

ej24-1000ms-mobility-scooter-key-features1

1. Easy Folding Design

Quick-fold structure allows fast storage and transport without complicated steps. Ideal for travel, car trunks, and limited storage spaces.

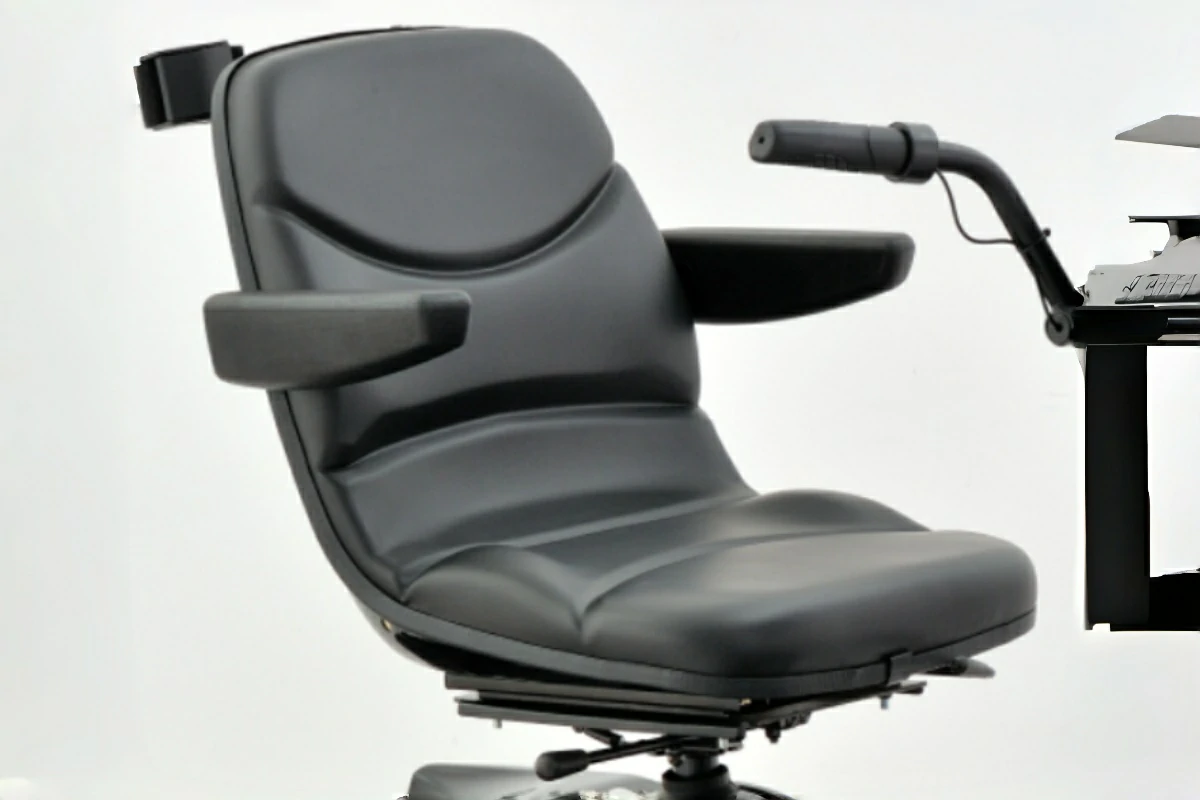

2. 360° Rotatable Captain Seat

Ergonomic captain seat rotates fully for easy on/off access and improved comfort. Provides better support during long rides and daily use.

ej24-1000ms-mobility-scooter-key-features2

ej24-1000ms-mobility-scooter-key-features3

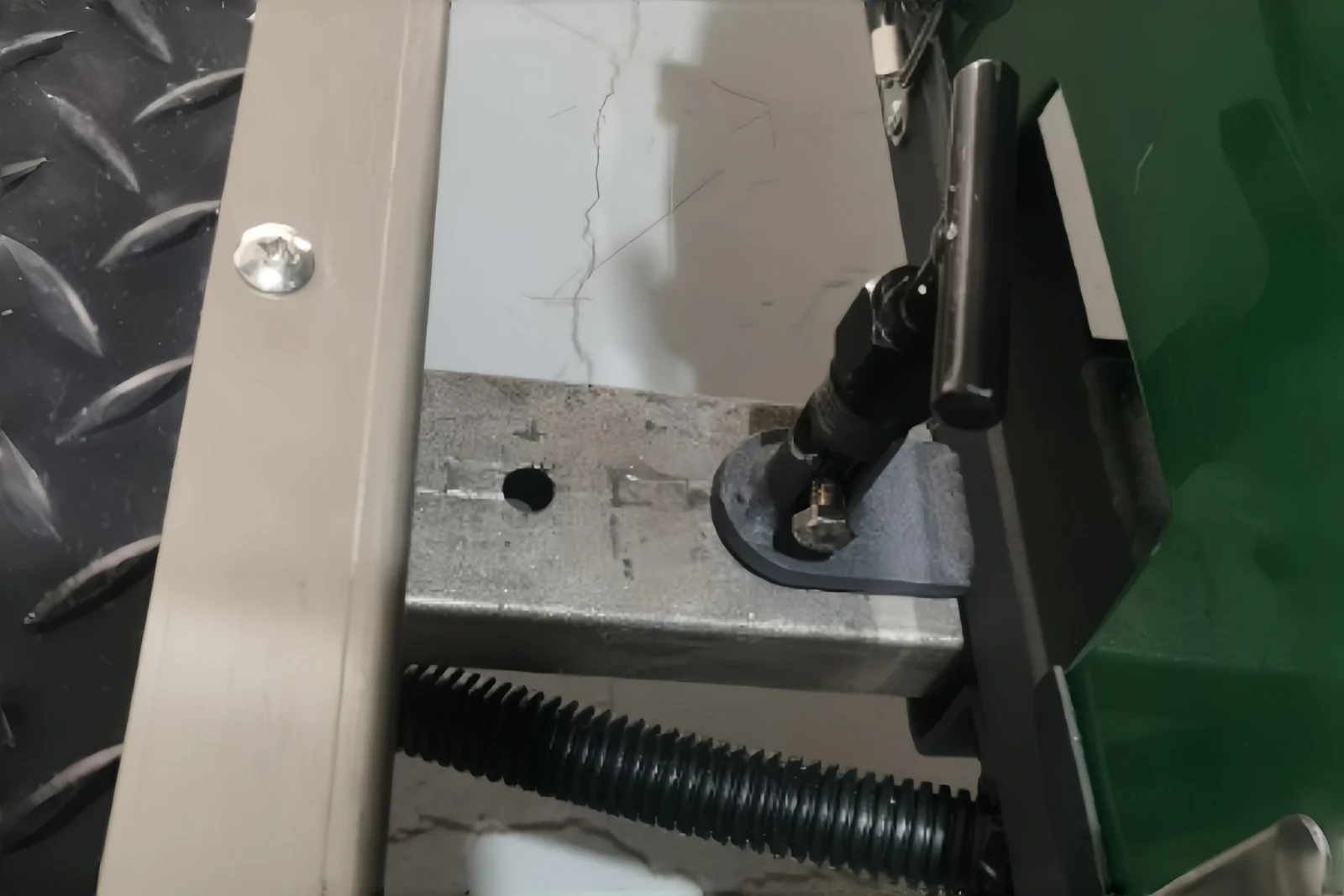

3. Length Adjustable Frame

Adjustable length design adapts to different rider sizes and seating preferences. Enhances riding comfort while maintaining stable control.

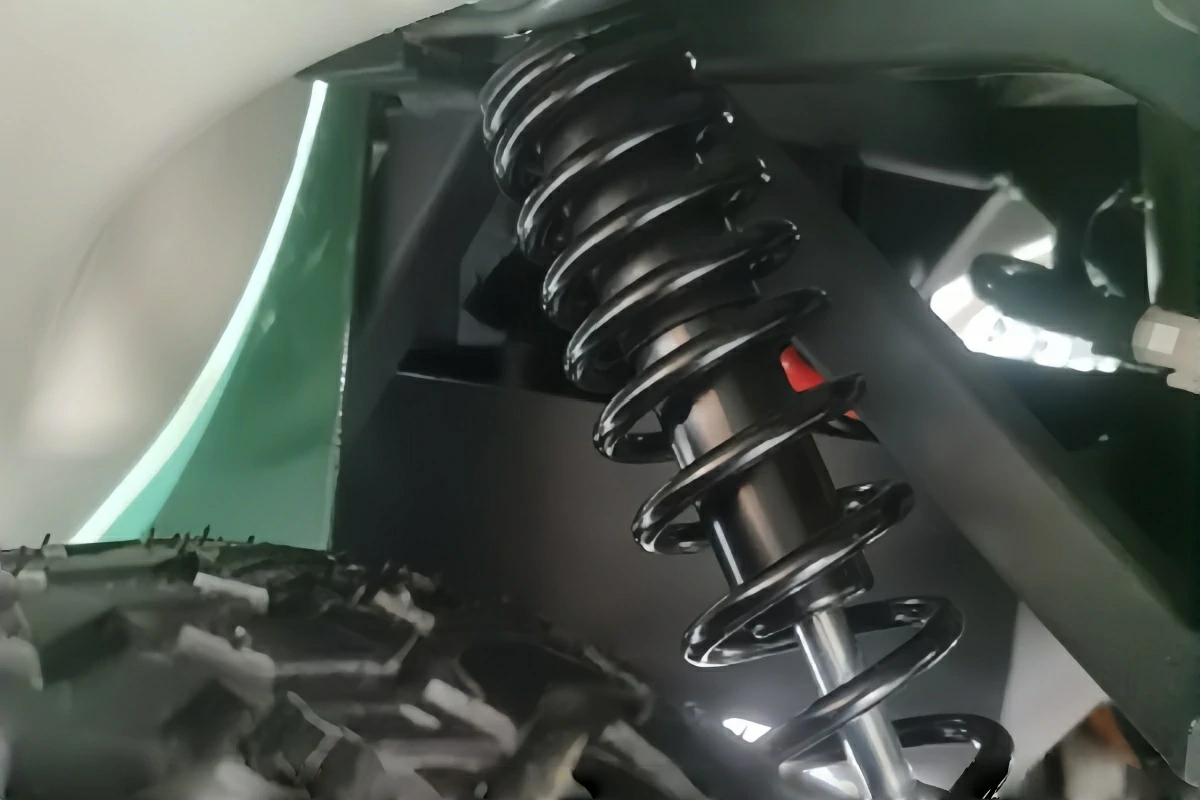

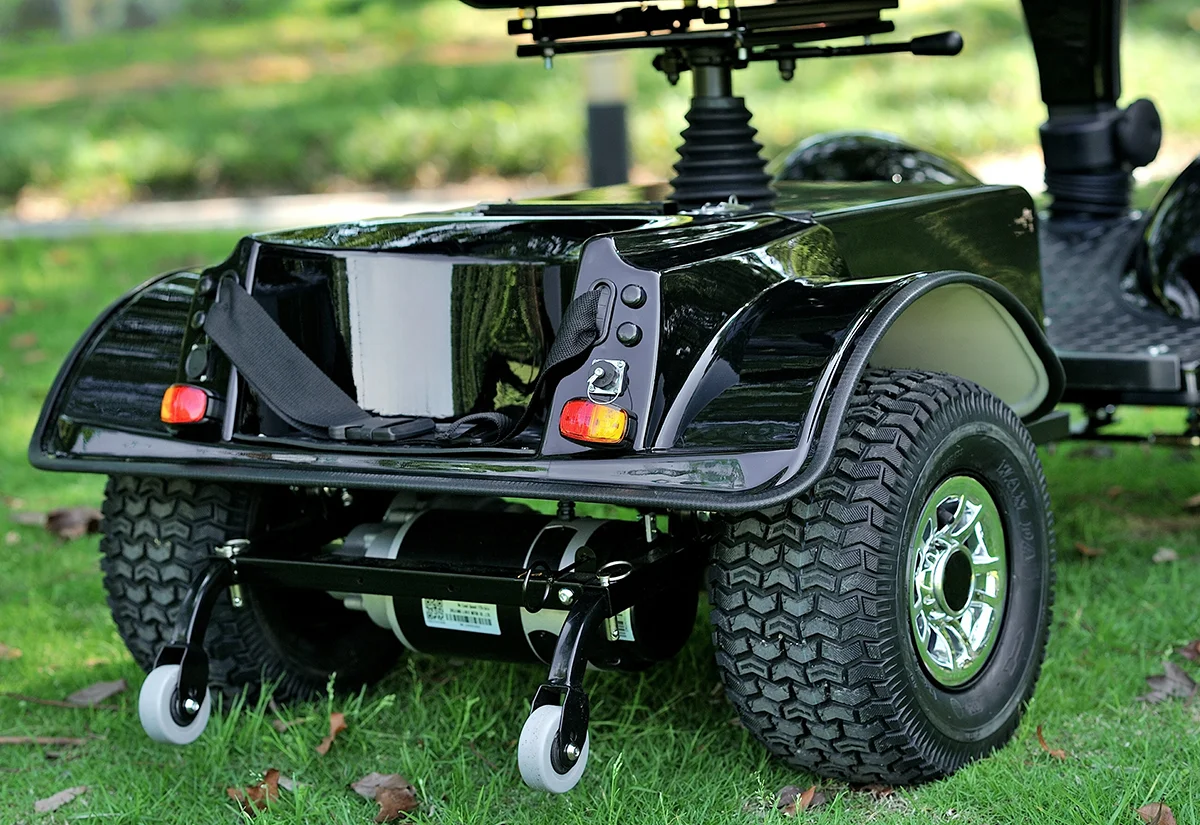

4. Rear Wheel Suspension System

Equipped with rear suspension to absorb shocks on uneven surfaces. Delivers smoother rides and increased stability across various terrains.

ej24-1000ms-mobility-scooter-key-features4

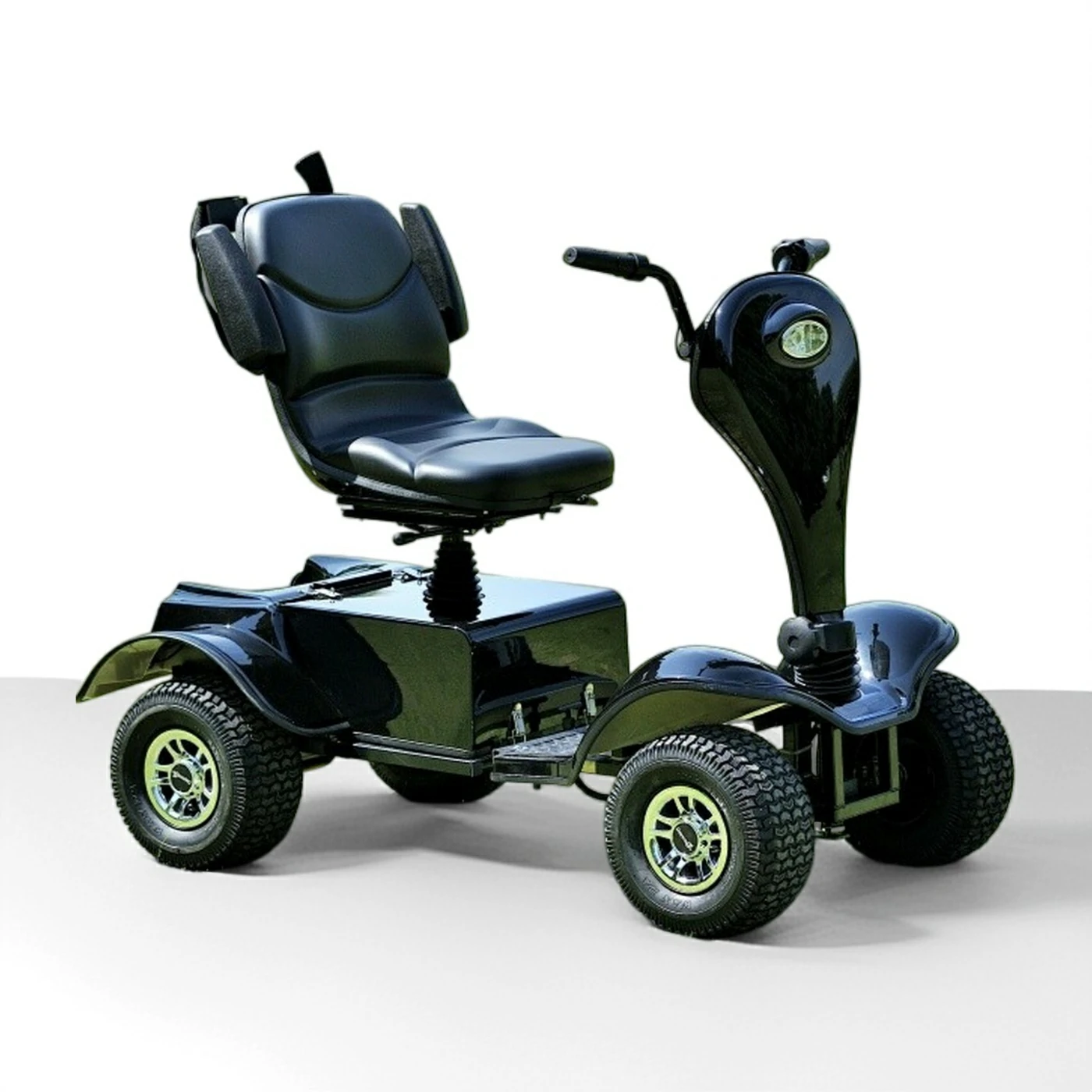

Specifications

Model	EJ24-1000MS
Max speed	10km/h or 16km/h
Max climbing degree	Less than 15°
Max Range	40KM (55AH) / 45KM (50AH Lithium)
Drive System	24V Linix Drive System
Motor	24V 1000W / 1200W Linix Motor
Battery	2×55AH Lead Acid / 24V 50AH Lithium Iron
Charger	24V 5A
Charging time	6–8h
Brake System	Electromagnetic Brake
Free Wheeling	Manual Electric

Overall Dimension(LWH)	1430×800×1100mm
N.W./G.W	100KG / 110KG
Turning Radius	1.8m
Ground Clearance	110mm
Max Load	200KG
Front tire	13×6.5-6 Tubeless
Rront tire	13×6.5-6 Tubeless
Seating	360° Swivel & Position Adjustment Foldable Seat
Qty/20′	36 pcs
Qty/40’HQ	84 pcs
