EJ24-800MS

24V 800W Motor / Sealed Mid Transaxle

Power Type

12km/h

Top Speed

150KG

Max. Load

110 mm

Ground Clearance

The DM416 mobility scooter is a versatile mid-size model designed for daily outdoor mobility and comfortable long-distance travel. Powered by a reliable 24V 800W motor with a sealed mid transaxle drive system, it offers stable handling and smooth performance. With multiple battery options, extended travel range, and compact maneuverability, the DM416 is well suited for both urban and outdoor environments.

Contact Us

Basic Configuration

12KM/H Travel Speed

Balanced top speed provides efficient daily mobility while maintaining stable control. Suitable for both outdoor pathways and community travel.

Up to 60KM Travel Range

Multiple battery configurations support extended riding distance. Ideal for users requiring longer outdoor trips with fewer charging stops.

1.6M Compact Turning Radius

Tight turning capability improves maneuverability in narrow areas. Enhances convenience for indoor access and crowded environments.

24V 800W Drive Performance

Reliable motor output ensures smooth acceleration and consistent driving stability. Designed for dependable everyday mobility use.

150KG Load Capacity Design

Strong frame structure supports stable riding performance for a wide range of users. Maintains balance and safety during extended operation.

Additional Features

Quick-Release Rotating Seat Design

360-degree rotating seat allows easier entry and exit while improving riding comfort. The seat can also be quickly removed for convenient transport and storage.

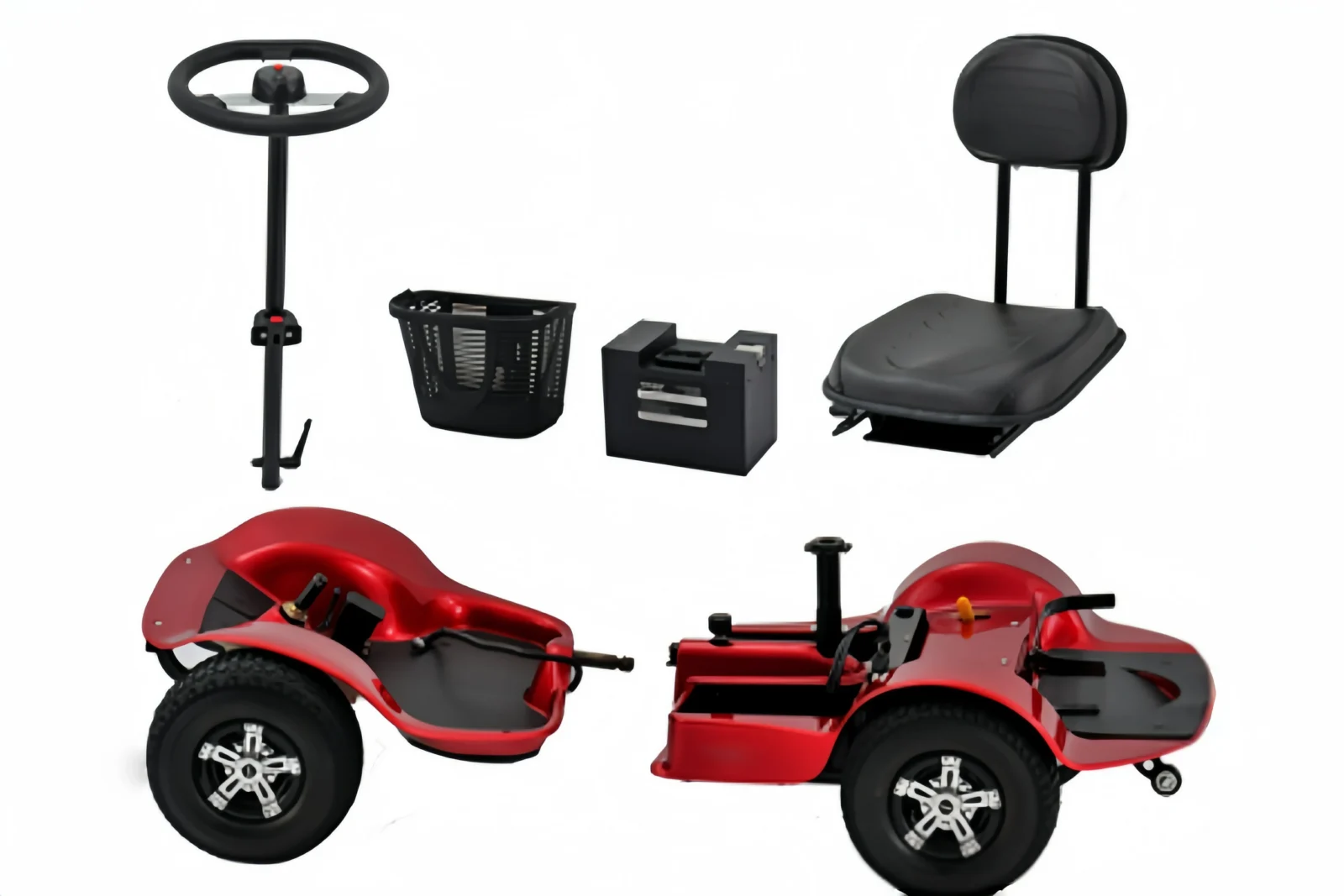

Modular Separation Structure

Vehicle can be easily separated into sections for transportation and handling. Makes loading, storage, and shipping more convenient.

ej24-800ms-mobility-scooter-key-features1

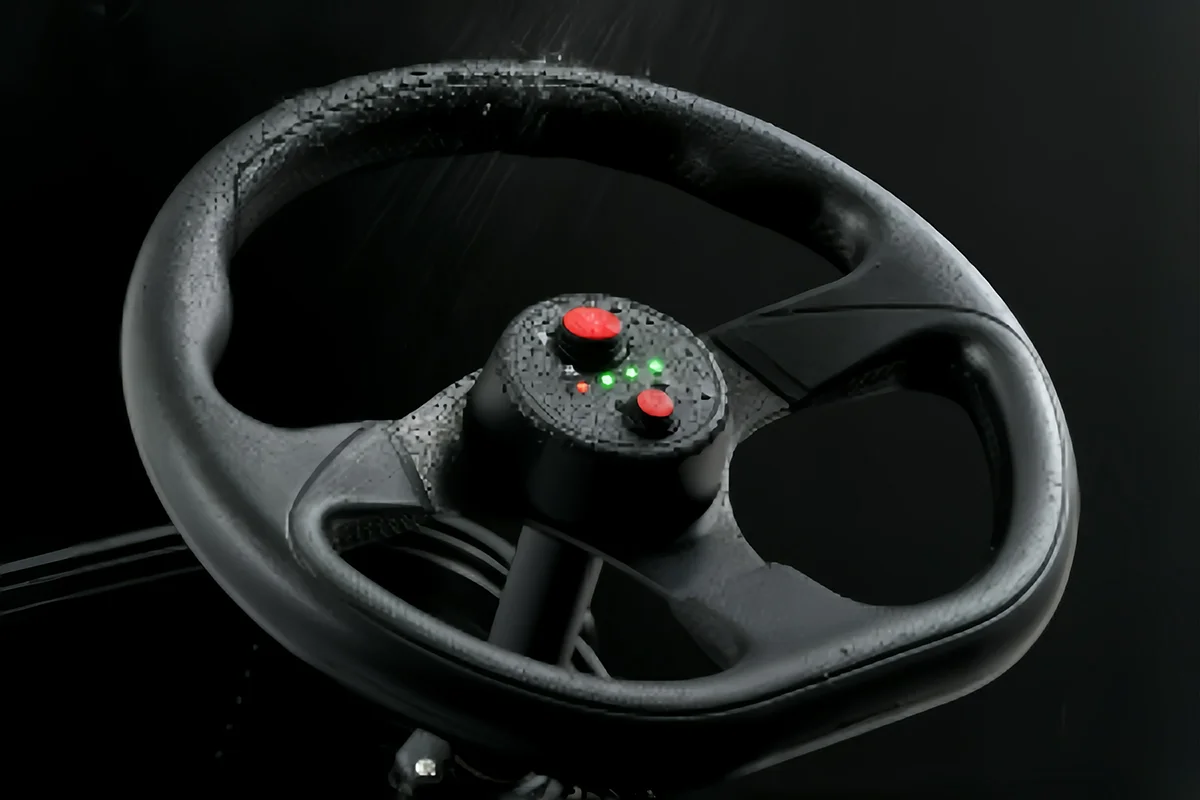

Waterproof Control & Electrical System

Equipped with waterproof steering wheel components, sealed control box, and protected cabling system. Enhances durability and reliability in outdoor environments.

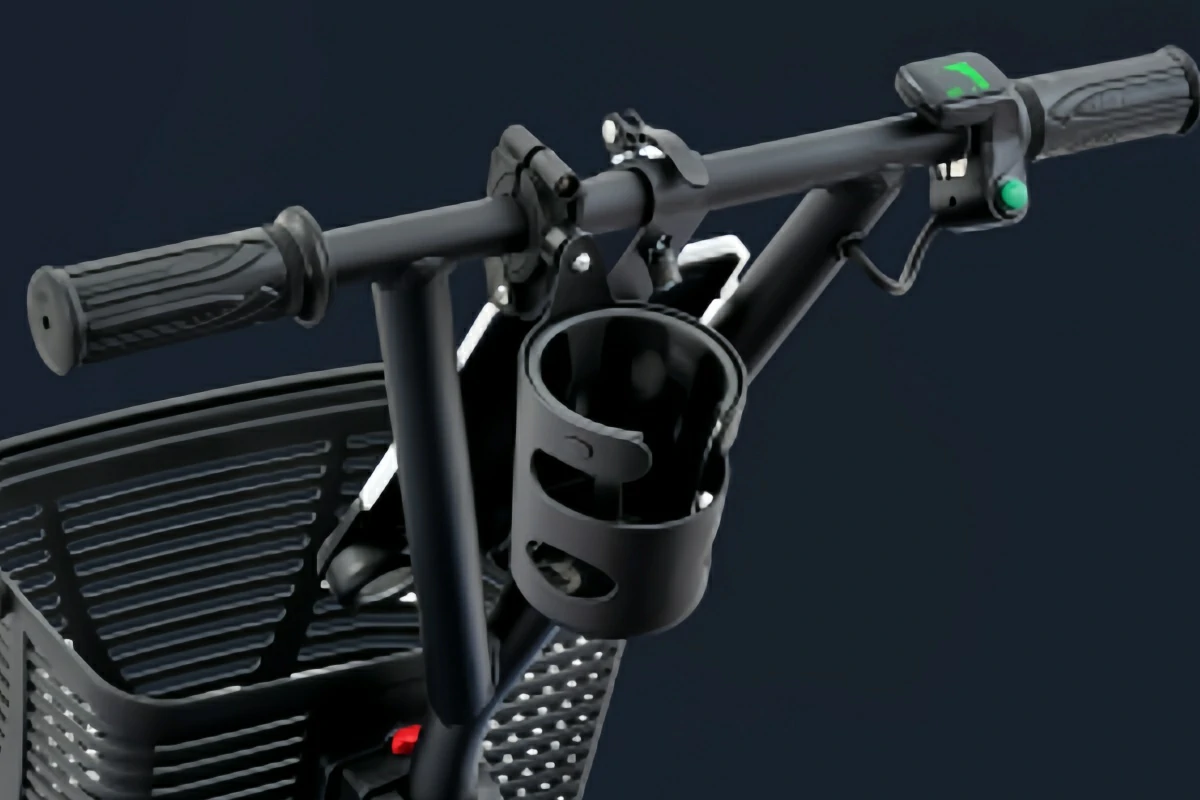

T-Style Handlebar with Foot Throttle Control

Ergonomic T-style handlebar combined with foot throttle operation provides stable steering and intuitive riding control.

ej24-800ms-mobility-scooter-key-features2

ej24-800ms-mobility-scooter-key-features3

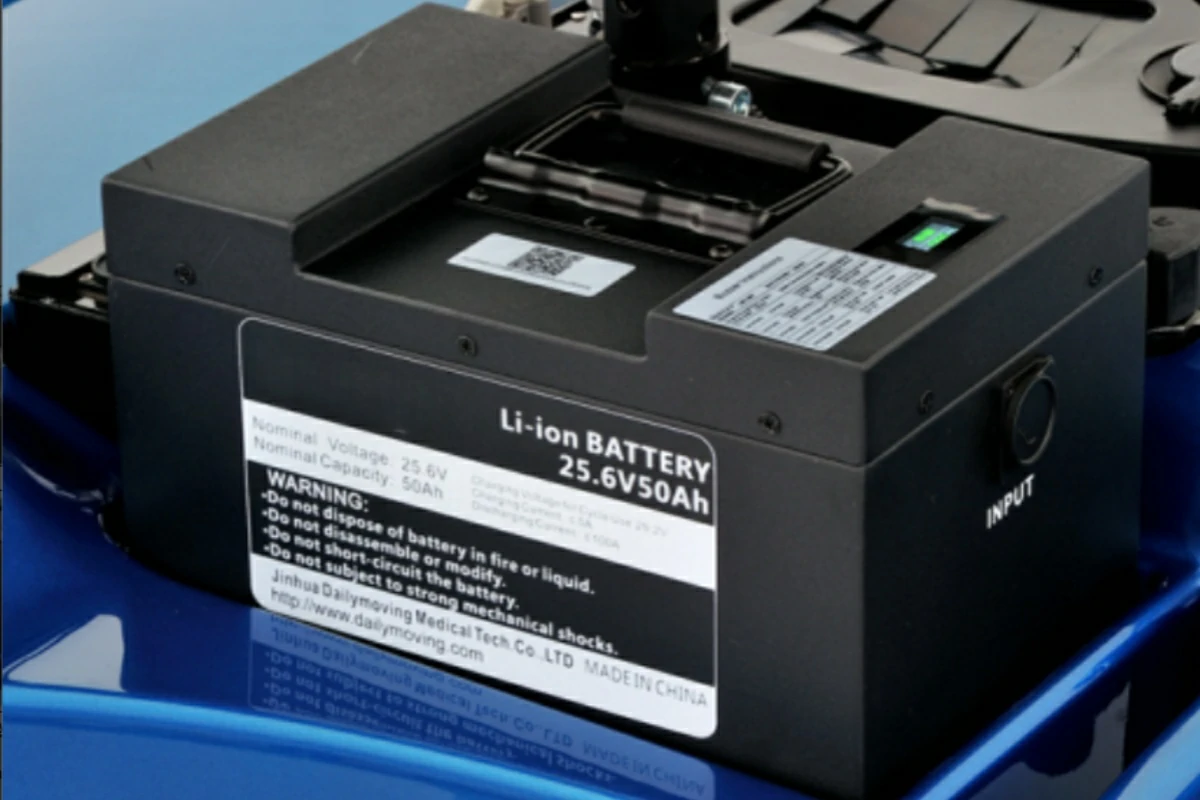

Removable Smart Lithium-Iron Battery (IP63)

High-safety lithium-iron battery features quick removal design and IP63 protection rating. Makes charging, replacement, and maintenance more convenient.

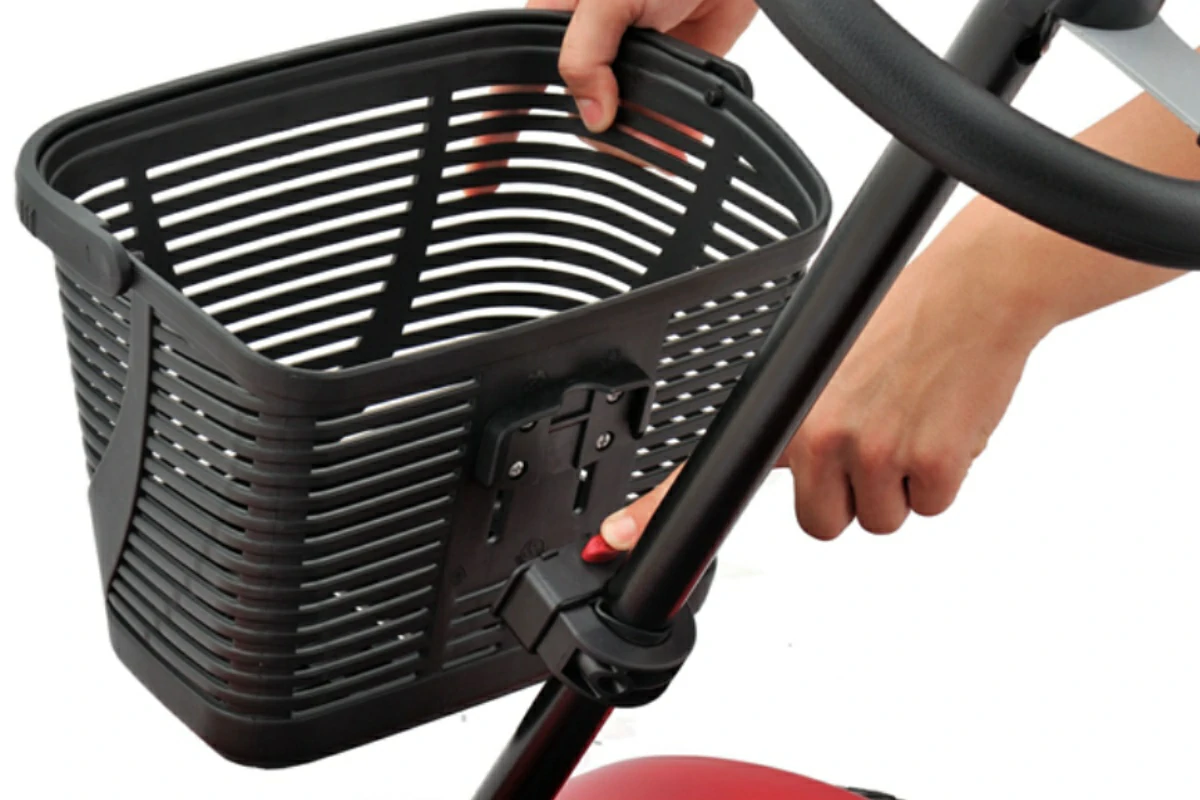

Quick-Detach Storage Basket

Rear basket can be easily removed when not needed. Provides flexible cargo options for daily use and transport.

ej24-800ms-mobility-scooter-key-features4

Specifications

Model	EJ24-800MS
Max speed	12km/h
Max climbing degree	15°
Max Range	45KM(55AH),60KM(75AH)
Drive System	24V Sealed Mid Transaxle
Motor	24V 800W
Battery	2X55AH; 2X75AH; 24V50AH lithium Iron
Charger	24V 5A/6A
Charging time	6-8h
Brake System	electromagnetic brake
Free Wheeling	Manual Electric

Overall Dimension(LWH)	14608601000mm
N.W./G.W	85KG/95KG
Turning Radius	1.6m
Ground Clearance	110mm
Max Load	150KG
Front tire	13*6.5-6 tubeless
Rront tire	13*6.5-6 tubeless
Seating	360° Swivel and Position Adjustment – Foldable seat
Qty/20′	45pcs
Qty/40’HQ	104pcs
