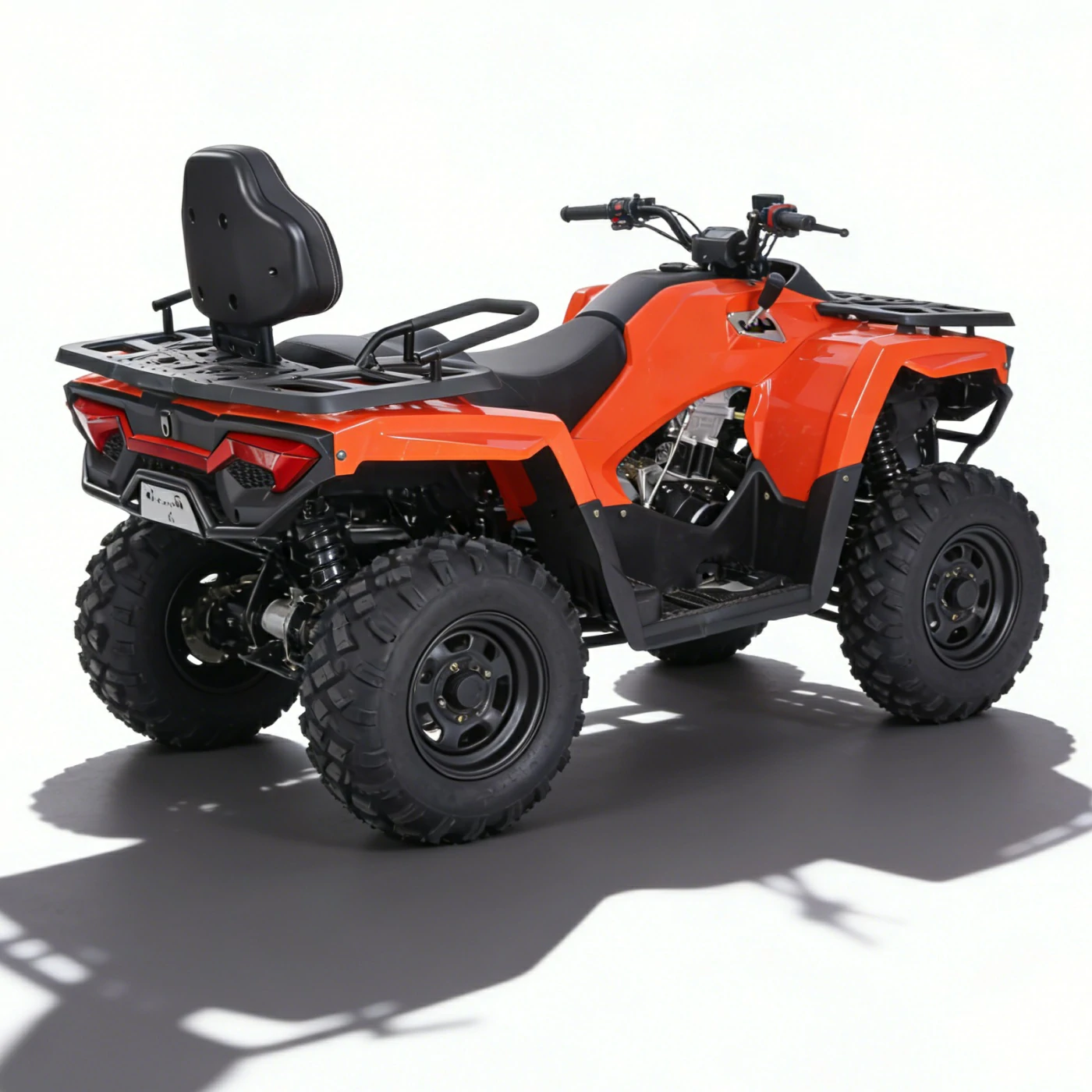

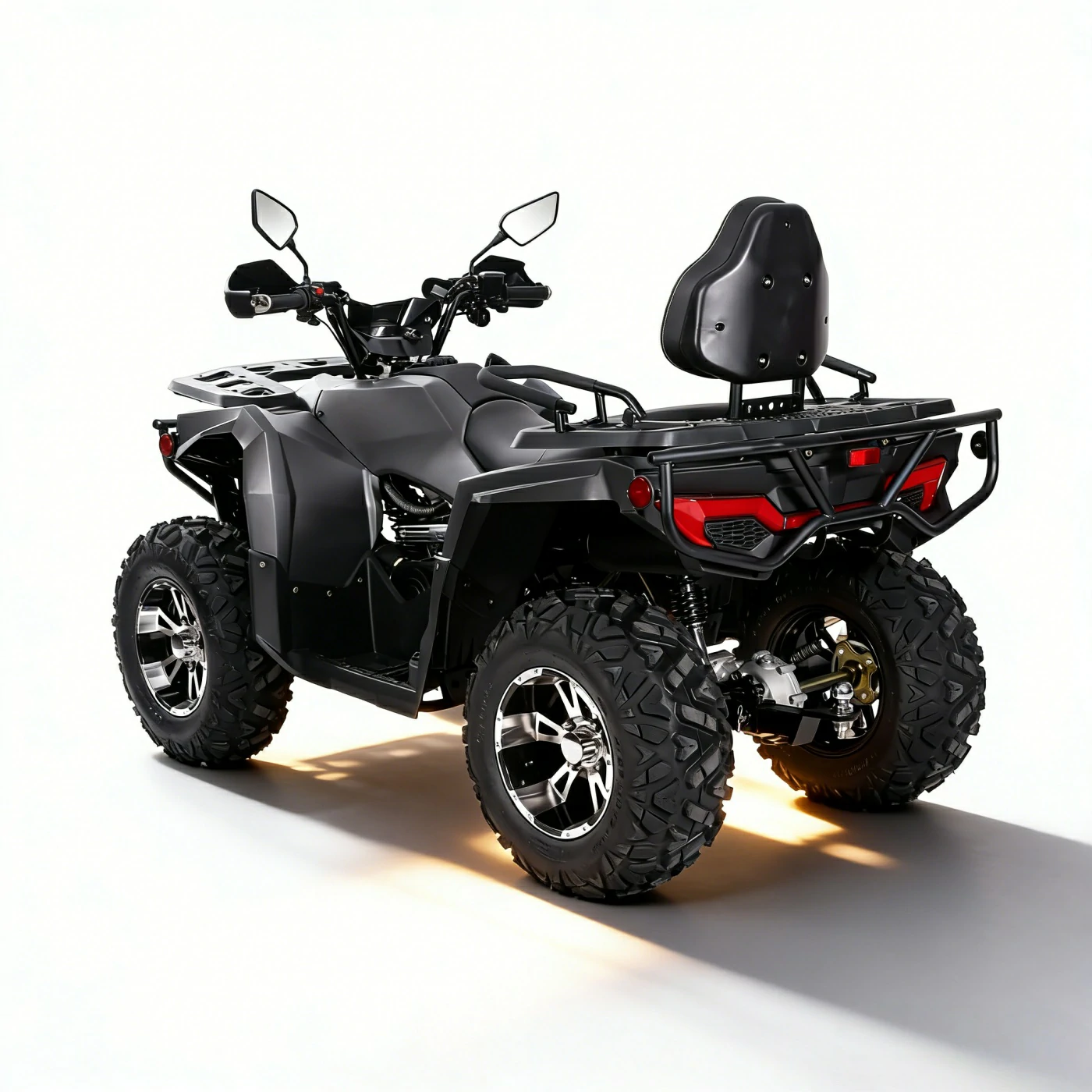

The EJ300CATV is a lightweight and agile off-road model designed for recreational riding and daily utility tasks. Featuring a 249.4ml engine and chain drive layout, it offers responsive handling, simple mechanical structure, and practical performance for entry-level and mid-range outdoor use.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Compact SOHC engine with uniaxial balance delivers stable and predictable power output.
Balanced power level suitable for trail riding, light hauling, and everyday off-road activities.
Direct chain transmission provides responsive acceleration and a simple mechanical layout.
Reduced vehicle weight improves maneuverability and ease of handling for various riders.
Moderate top speed ensures controlled riding while maintaining enjoyable performance.
Shorter chassis with narrow width design improves control in tight trails and forest paths.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
Heavy-duty suspension arms clearly visible in structure, enhancing shock absorption and ride stability.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

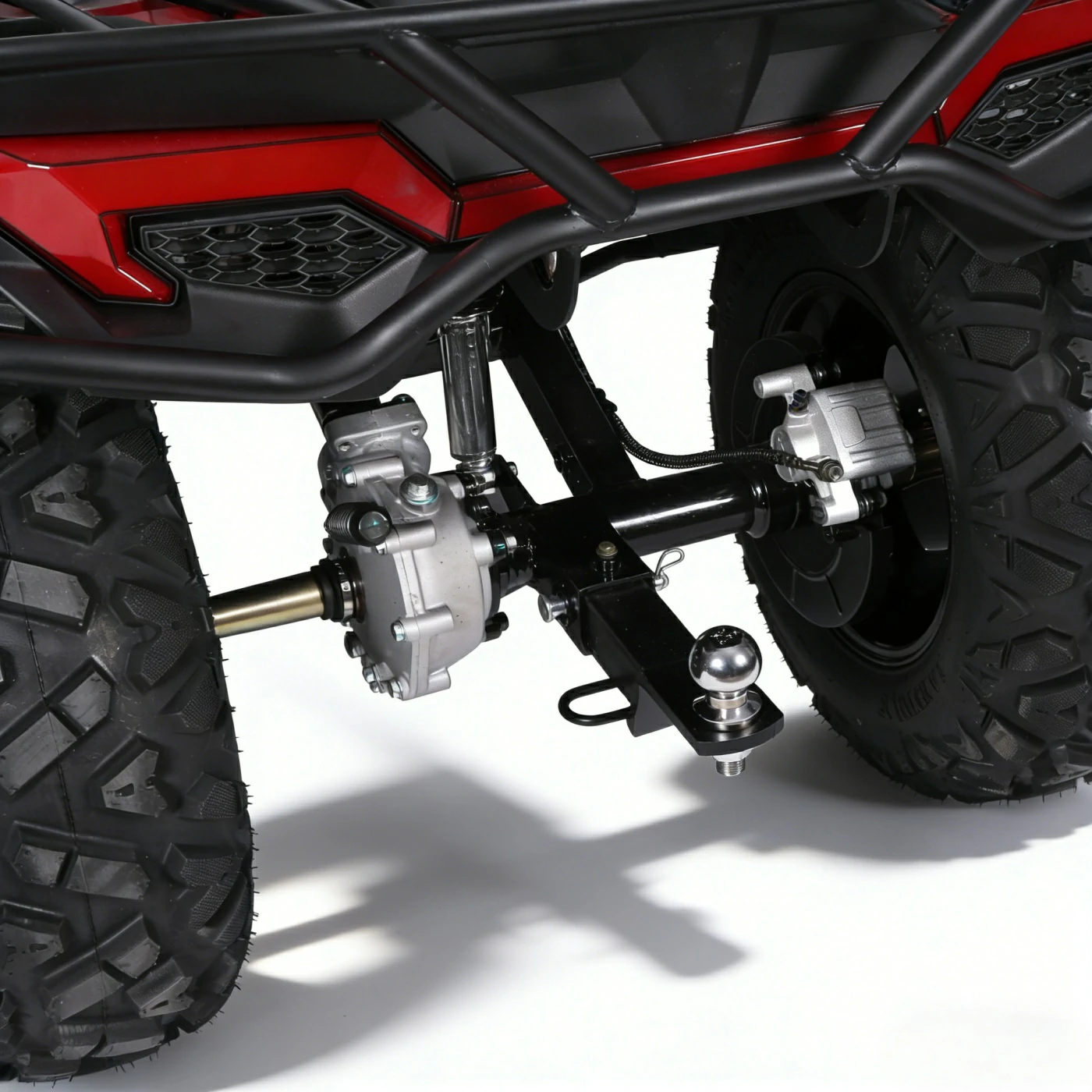

Front dual disc and rear single disc braking system offers consistent and reliable stopping power.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.

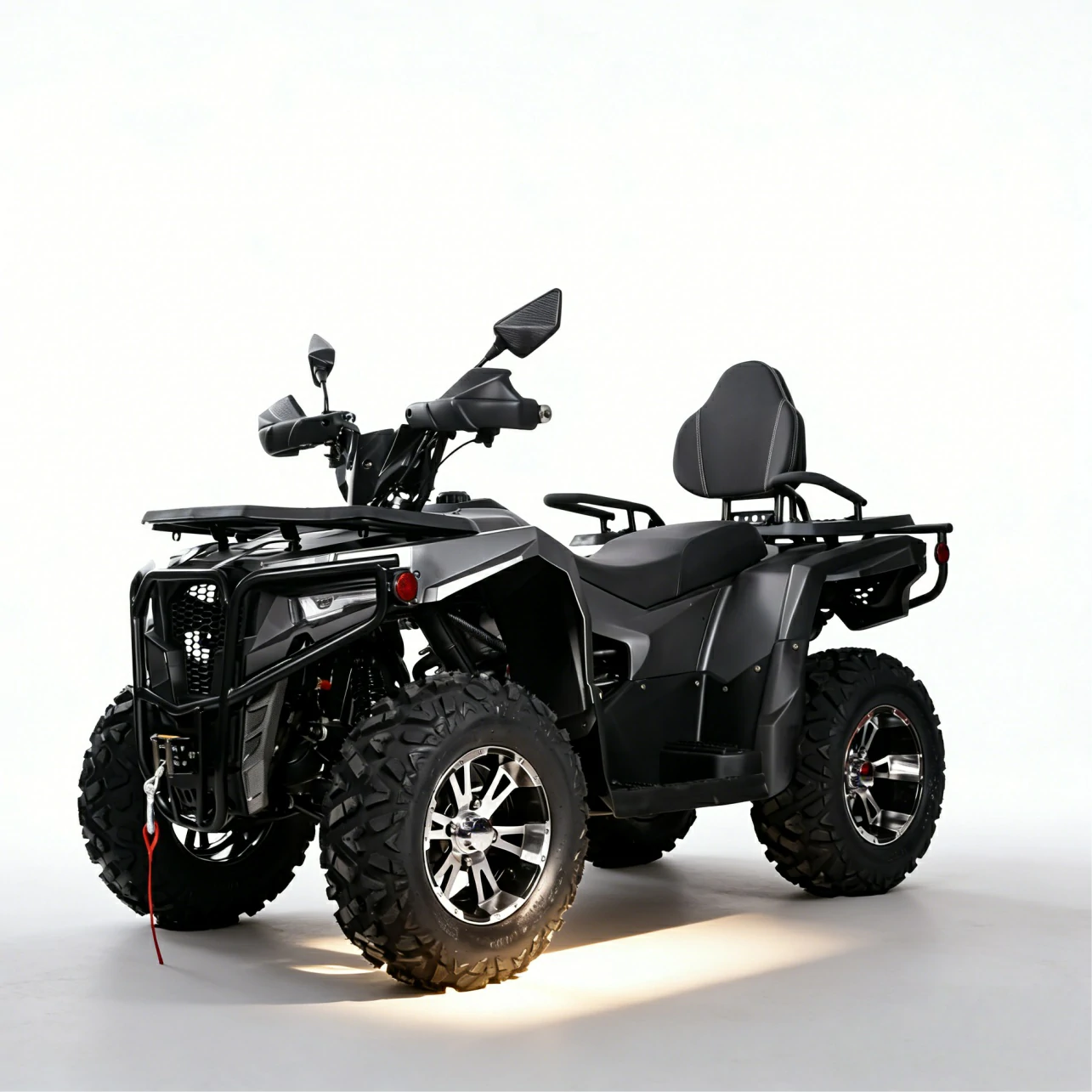

Durable alloy wheels combined with off-road tread tires provide strong traction and rugged appearance.
For general inquiries, introductions, or early-stage discussions, please use the short form below.
No technical details required.
| Engine Type | EJ300CATV |
| Engine Type | Single cylinder, four stroke, SOHC, water cooling，uniaxal balance |
| Bore x Stroke | 70×64.8mm |
| Displacement | 249.4ml |
| Max. Torque | 20.5N.m / 5000r/min |
| Max. Power | 13.5kw / 7000r/min |
| Spark Plug Type | D8RTC / DR8EA NGK) |
| Starting Type | Electric start |
| Gear Shift / Order | Manually / F—N—R |
| Lubricating Oil & Usage | SL 10W/40（GB 11121-2006）/1300ml |
| Transmission | (CVT) + Gear shift |
| Drive System | 4X2 Chain drive |
| Top Speed | 65 km/h |
| Battery Capacity | 12V9Ah |
| Overall Size (L×W×H) | 1940×1090×1220MM |
| Wheelbase | 1300mm |
| Tread | 970mm |
| Ground Clearance | 200mm |
| Min. Turning Radius | 3300mm |
| Dry Weight | 260 kg |
| Front Suspension | Double A-arm independent suspension |
| Rear Suspension | Double A-arm independent suspension |
| Front / Rear Brakes | Dual hydraulic disc / Single hydraulic disc |
| Parking Brake | Hand-Actuated |
| Front Tires | ATV 25×8-12 |
| Rear Tires | ATV 25×10-12 |
| Wheels | Aluminum alloy |
| Carburetor (Std.) |
| Winch & Side Bars |
| EFI Version |
