EJ36-1400MS

36V 1400W Motor

Power Type

19km/h

Top Speed

300KG

Max. Load

100 mm

Ground Clearance

The DM821 mobility scooter is a high-performance heavy-duty model designed for long-range travel and enhanced stability. Equipped with a powerful 36V 1400W motor, differential rear drive, and large 15″ tubeless tires, it delivers strong climbing ability and smooth handling across various terrains. With high load capacity, extended travel range, and adjustable dimensions, the DM821 is ideal for daily mobility, outdoor use, and extended riding needs.

Contact Us

Basic Configuration

36V 1400W High-Torque Motor

Powerful motor system delivers strong acceleration and stable performance. Suitable for heavier riders and extended outdoor use.

Up to 45KM Travel Range

Long-distance capability supports daily commuting and longer recreational trips. Reduces frequent charging concerns during regular use.

19KM/H Top Speed Performance

Enhanced speed provides efficient travel compared with standard mobility scooters. Ideal for users seeking faster and more dynamic mobility.

12° Climbing Capability

Strong climbing performance allows smoother operation on slopes and uneven terrain. Improvest confidence in outdoor environments.

190KG Heavy-Duty Load Capacity

Robust structural design supports higher weight capacity for different rider needs. Ensures stable and secure riding performance.

Additional Features

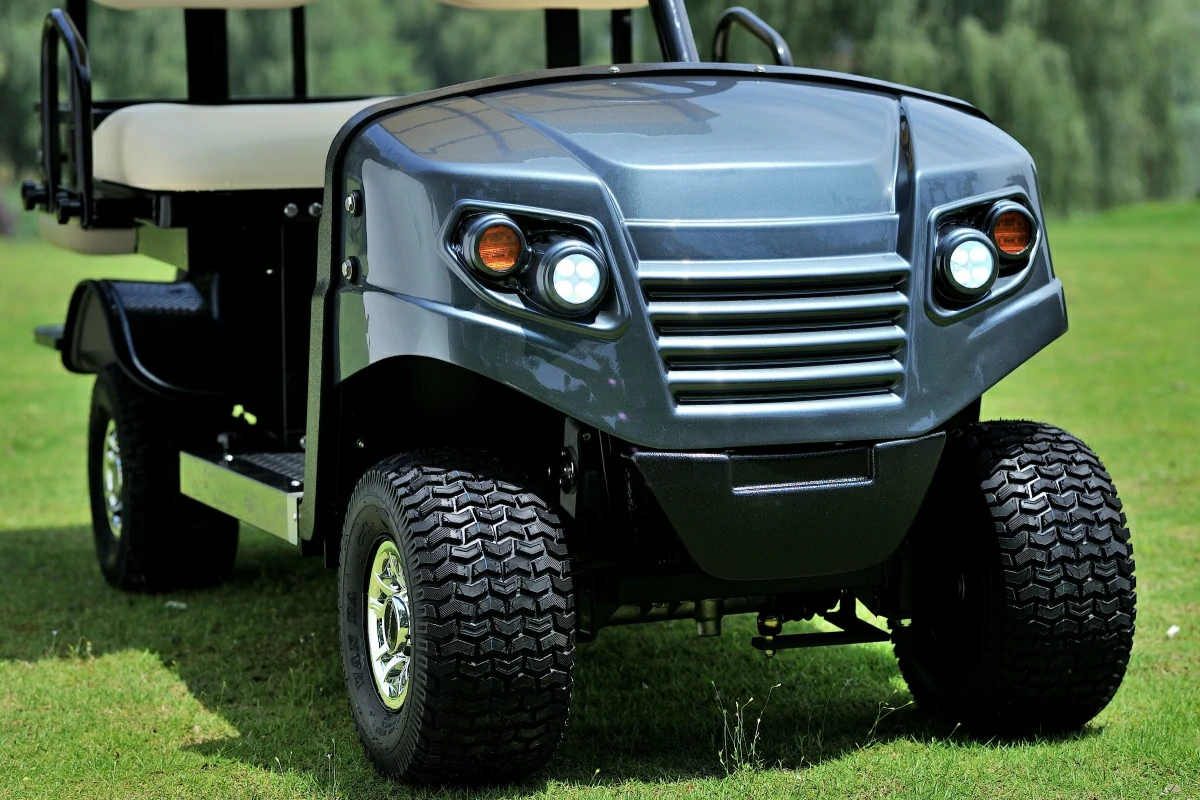

Front Light with Turning Light

Integrated front lighting with turning signals improves visibility and riding safety. Helps ensure clearer direction indication during daily use.

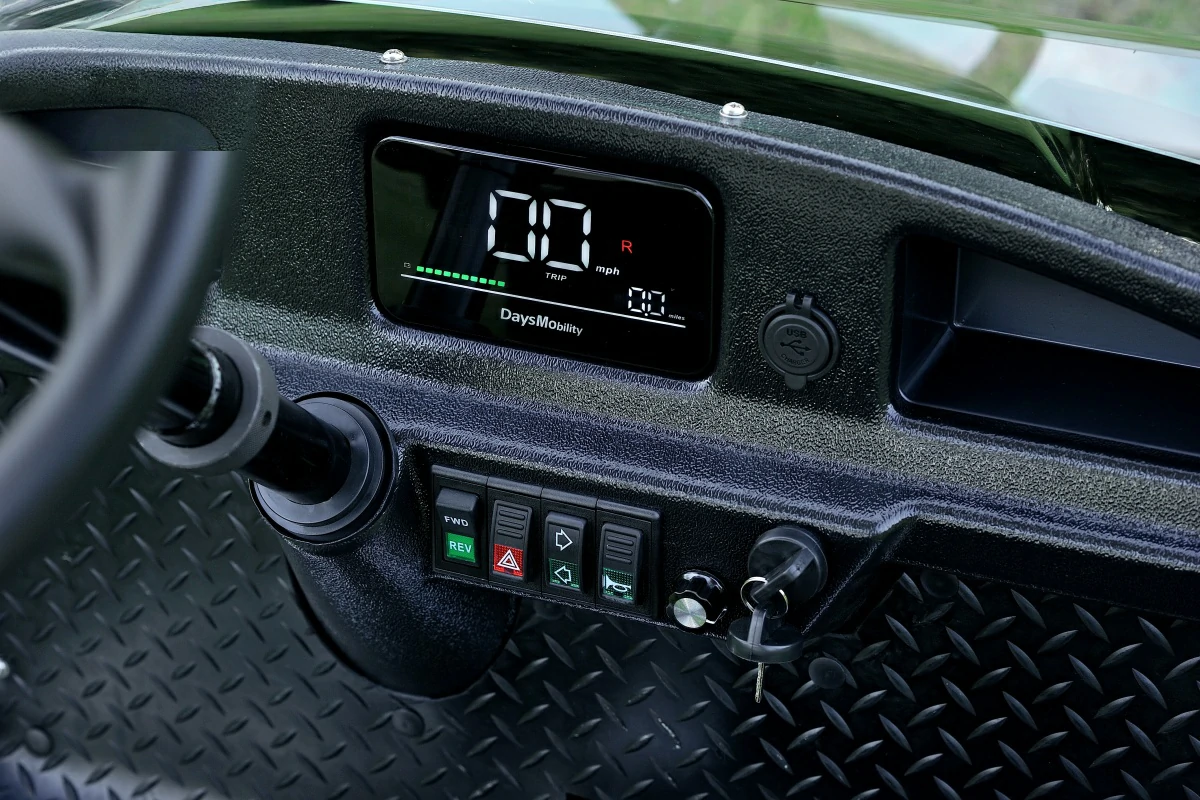

Operation Panel with LCD Display

User-friendly LCD operation panel provides clear riding information at a glance. Enhances control and convenience during operation.

Collapsible Frame Design

Foldable frame structure allows easier storage and transportation. Improves flexibility for transport and space-saving needs.

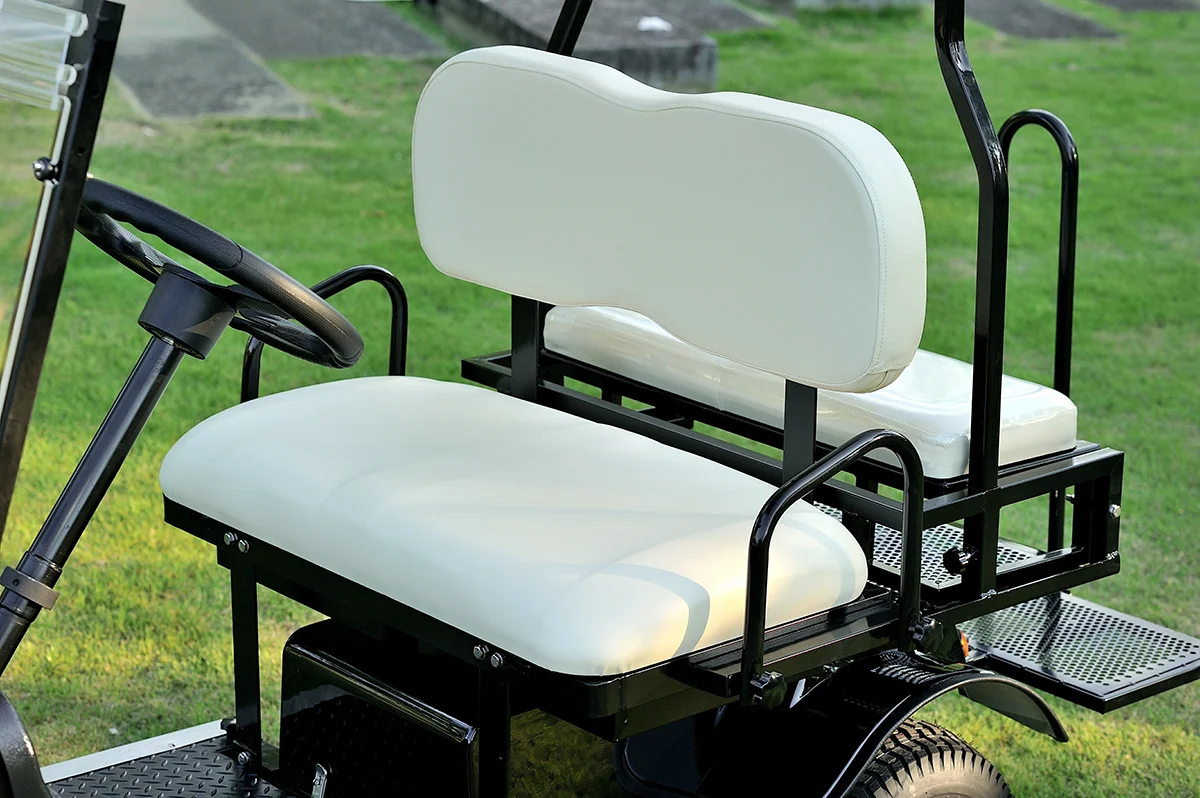

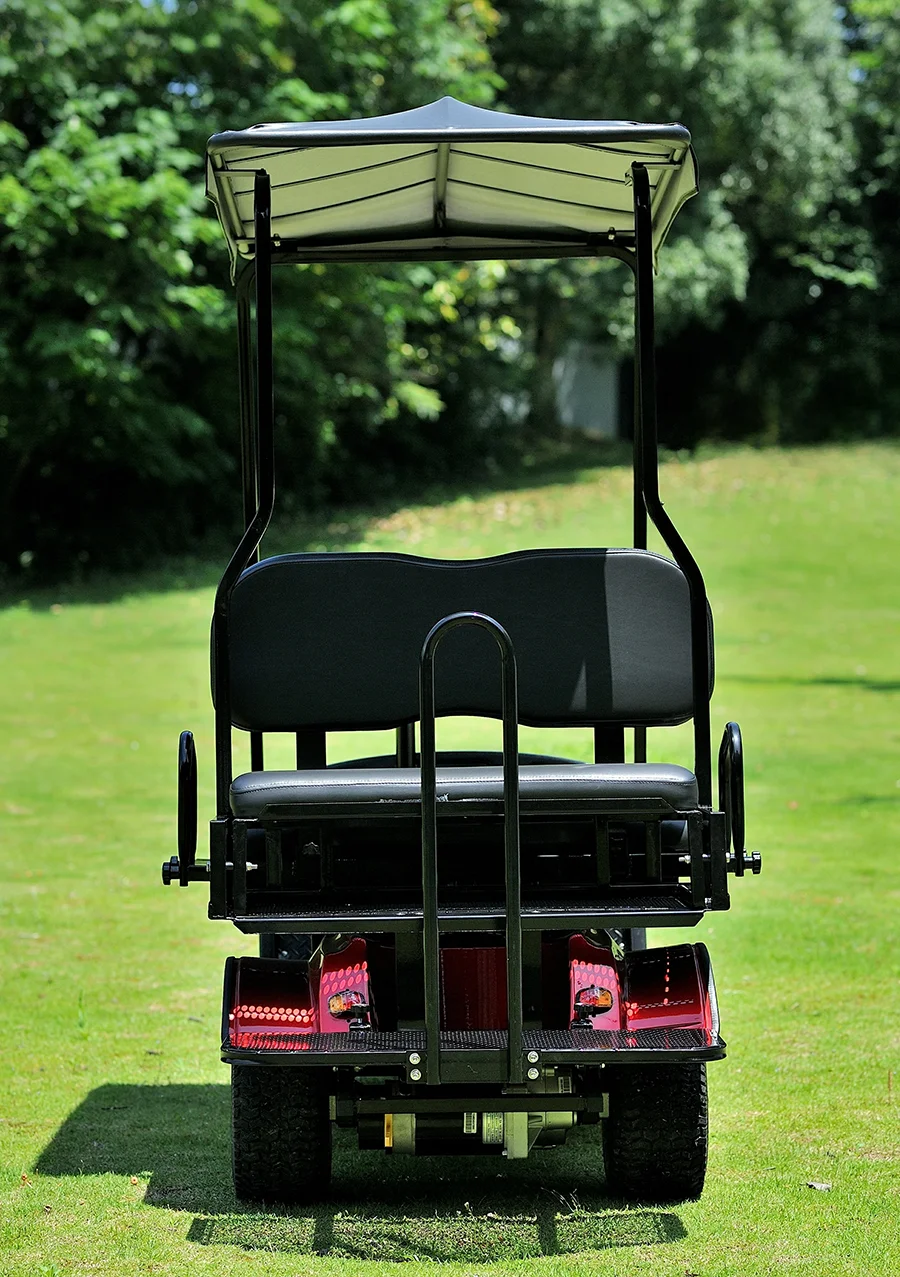

Easy Foldable Rear Seat with Basket

Rear seat folds quickly to create extra cargo space with a built-in basket. Offers practical storage for tools, bags, or daily items.

ej36-1400ms-mobility-scooter-Foldable-Rear-Seat-with-Basket

Specifications

Model	EJ36-1400MS
Drive system	36V Sealed Mid Transaxle
Motor	36V 1400W
Battery	3X55AH Lead Acid/ 36V 50AH Lithium
Charger	36V 8A on Board Charger
Charging time	4-6 h
Travel Range	45 km
Max Speed (15″ wheel)	19 km
Climb angle (15″ wheel)	12°
Brake system	electromagnetic brake
Charger	24V 2.0A
Max Load	190 kg / 418 lbs
Drive Train	Differential rear drive

Overall Dimension(L*W) Stretched	1780*980mm
Overall Dimension(L*W) Shortened	1470*830mm
Overall Height (Without tops)	1080mm
Overall Height (With tops)	1800mm
N.W./G.W	180KG/220KG
Turning Radius	2.3 m
Ground Clearance	110mm
Seat width(Front)	1000mm
Seat width(Rear)	740mm
Max Load	300 KG
Front Tire (15″)	15*6.00-6 (Tubeless)
Rear Tire (15″)	15*6.00-6 (Tubeless)
Qty/20′	28pcs
Qty/40’HQ	60pcs
